Product Summary
The RNP50S is a 100W high power resistor in TO-247 molded package.
Parametrics
RNP50S absolute maximum ratings: (1)Rating power: 100 Watts; (2)Rating power: 3.0 Watts; (3)Max. Applied power: 100 Watts; (4)Resistance range: 0.1-9.1 ohm, 10-220 ohm; (5)Nominal resistance: E12, E24; (6)TCR: 100 ppm/C, 50 ppm/C; (7)Tolerance: ±5%, ±1%; (8)Operation temp. Range: -55 to +155 ℃; (9)Withstanding voltage: 2500 Volt; (10)Load life: ±(1.0 %+0.05 ohm); (11)Humidity: ±(1.0 %+0.05 ohm); (12)Temperature cycle: ±(0.25 %+0.05 ohm); (13)Soldering heat: ±(0.25 %+0.05 ohm); (14)Solder ability: Over 3/4 of round; (15)Insulation resistance: Over 1000 Meg ohm; (16)Vibration: ±(0.25 %+0.05 ohm).
Features
RNP50S features: (1)100W high power resistor in TO-247 molded package; (2)Just 1.3C/W heat resistance between resistor and flange realized; (3)Non-inductive design suits for high frequency circuit and wide band amplifiers; (4)Small size and thin type suits for high density electronics design; (5)Complete thermal conduction and heat dissipation design to be available; (6)AC motor control, IPM, SW power supply, volt power sources, constant current sources, electronic load, precision voltage sources, industrial RF power sources, RF linear amplifiers, and termination resistor of RF circuits.

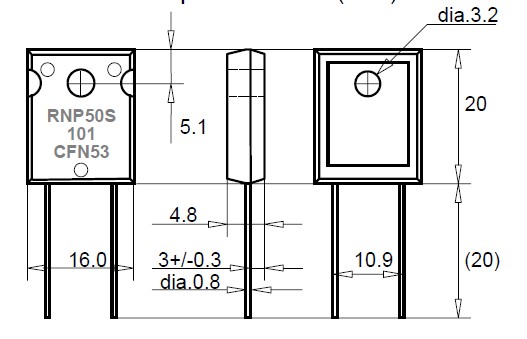

Diagrams
