Product Summary
The s1d13806f00a100 series is a LCD Controller IC that can display text and graphics on LCD panel. The s1d13806f00a100 series can display layered text and graph-ics, scroll the display in any direction and partition the display into multiple screens.
Parametrics
S1D13806F00A100 absolute maximum ratings: (1)Supply voltage range, VDD: –0.3 to 7.0 V; (2)Input voltage range, VIN: –0.3 to +0.3 V; (3)Power dissipation, PD: 300 mW; (4)Operating temperature range, Topg: –20 to 75 ℃; (5)Storage temperature range, Tstg: –65 to 150 ℃; (6)Soldering temperature (10 seconds), Tsolder: 260 ℃.
Features
S1D13806F00A100 features: (1)Text, graphics and combined text/graphics display; (2)modes; (3)Three overlapping screens in graphics mode; (4)Up to 640 × 256 pixel LCD panel display resolution; (5)Programmable cursor control; (6)Smooth horizontal and vertical scrolling of all or part; (7)of the display; (8)1/2-duty to 1/256-duty LCD drive; (9)Up to 640 × 256 pixel LCD panel display resolution; (10)memory; (11)160, 5 × 7 pixel characters in internal mask-program-; (12)med character generator ROM; (13)Up to 64, 8 × 16 pixel characters in external character; (14)generator RAM; (15)Up to 256, 8 × 16 pixel characters in external character; (16)generator ROM; (17)6800 and 8080 family microprocessor interfaces; (18)Low power consumption—3.5 mA operating current; (19)(VDD = 3.5V), 0.05 μA standby current.

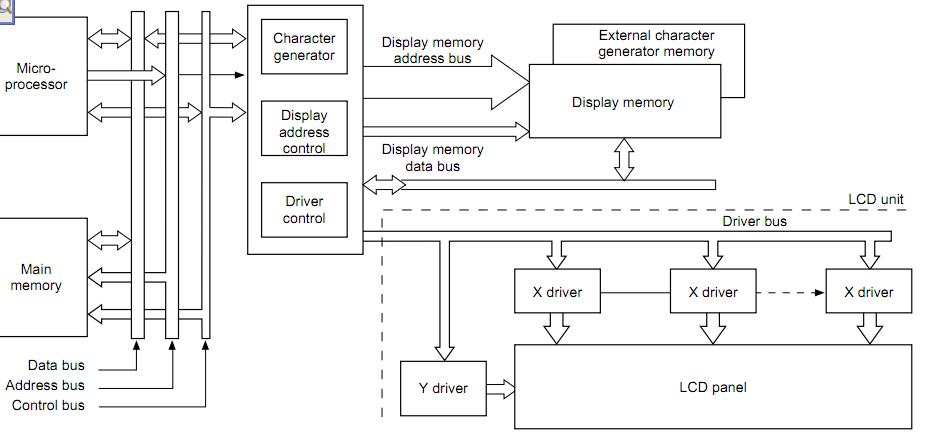

Diagrams
