The S5335QFAAB is a PCI bus controller. The S5335QFAAB concept was developed to break the PC data I/O bottleneck and clearly opens the door to increasing system speed and expansion capabilities. The S5335QFAAB moves high speed peripherals from the I/O bus and places them closer to the system processor bus, providing faster data transfers between the processor and peripherals. The S5335QFAAB also addresses the industry need for a bus standard which is not directly dependent on the speed, size and type of system processor. It represents the first microprocessor independent bus offering performance more than adequate for the most demanding applications such as full-motion video. Applications are (1)High speed networking; (2)Digital video applications; (3)I/O communications ports; (4)High speed data input/output; (5)Multimedia communications; (6)Memory interfaces; (7)High speed data acquisition; (8)Data encryption/decryption; (9)Intel i960 interface; (10)General purpose PCI interfacing.
Parametrics
S5335QFAAB absolute maximum ratings: (1)Storage temperature: -55 to 125 °C; (2)Junction temperature: -10 to 105 °C; (3)Supply voltage (VCC): -0.3 to 4 V; (4)Input pin voltage: -0.3 to 6 V; (5)ESD voltage rating (human body model): 2000 V; (6)ESD voltage rating (machine model): 200 V.
Features
S5335QFAAB features: (1)PCI 2.1 compliant master/slave device; (2)Full 132 mbytes/sec transfer rate; (3)PCI bus operation DC to 33 MHz; (4)8/16/32 bit add-on user bus; (5)3.3V power supply; (6)5V tolerant I/Os; (7)Four definable pass-thru data channels; (8)Two 32 byte internal FIFOs w/DMA; (9)Synchronous add-on bus operation; (10)Mail box registers w/byte level status; (11)Direct mail box data strobe/interrupts; (12)Direct PCI, Add-On interrupt pins; (13)Optional non-volatile memory boot loading; (14)Optional expansion BIOS/POST code; (15)176 pin LQFP; (16)Environmental friendly lead-free package option.

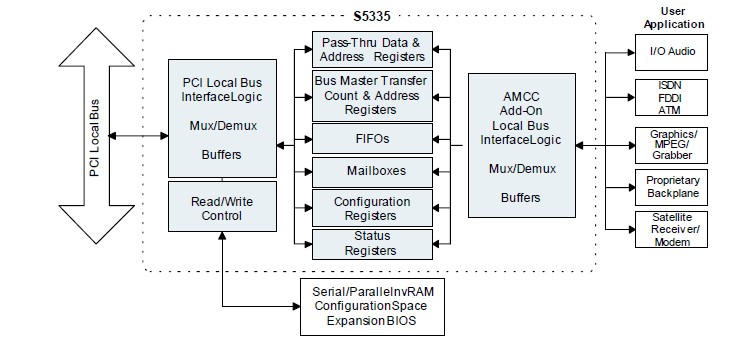

Diagrams
