Product Summary

The scfb1a0500 is a Connector for Compact Flash. The applications of the device are (1)For digital still cameras, digital camcorders, various personal digital assistants and printers; (2)For flat panel TVs; (3)For notebook PCs.

Parametrics

scfb1a0500 absolute maximum ratings: (1)operating temperature range: -20 to 60°C; (2)voltage proof: 500V AC 1minute; (3)insulation resistance: 1000mΩ min; (4)contact resistance: 40mΩ max; (5)insertion and removal cycle: 10000cycles.

Features

scfb1a0500 features: (1)Metal-plated structure enhances noise reduction and mechanical strength; (2)Screw clamping structure strengthens mounting; (3)Minimized depth design contributes to smaller body structure.

Diagrams

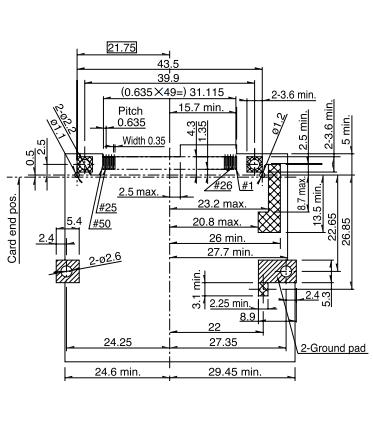

scfb1a0500 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SCFB1A0500
SCFB1A0500
ALPS
Memory Card Connectors Pin header CF card Mates w/ SCFB3A0300
Data Sheet
Negotiable
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SCFB1A0500
SCFB1A0500
ALPS
Memory Card Connectors Pin header CF card Mates w/ SCFB3A0300
Data Sheet
Negotiable
SCFB1A0600
SCFB1A0600
ALPS
Memory Card Connectors Pin header CF conn Mates w/ SCFB2A0400
Data Sheet
0-1: $1.79
1-25: $1.57
25-50: $1.28
50-100: $1.15
SCFB1A0700
SCFB1A0700
ALPS
Memory Card Connectors Pin header CF conn Mates w/ SCFB2A0500
Data Sheet
Negotiable
SCFB1A0800
SCFB1A0800
ALPS
Memory Card Connectors PIN HEADER
Data Sheet
Negotiable
SCFB1A0900
SCFB1A0900
ALPS
Memory Card Connectors PIN HEADER
Data Sheet
Negotiable
SCFB2A0200
SCFB2A0200
ALPS
Memory Card Connectors USE 688-SCFB2A0500
Data Sheet
Negotiable
