Product Summary
The sk50gb067 is a IGBT module. The sk50gb067 can be applied in swithing (not for linear use), high frequencies applications, welding generator, and swithed mode power supplies.
Parametrics
sk50gb067 absolute maximum ratings: (1)VGES: 600V; (2)VGES:±20V; (3)Ic:83A; (4)Icm: 166A; (5)Tj: -40 to +150°C.
Features
sk50gb067 features: (1)compact design; (2)one screw mounting ; (3)heat transfer and isolation through direct copper bonding aluminium oxide ceramic; (4)Hyper fast NPT IGBT; (5)N-channel homogeneous silicon structure; (6)positive Vcesat temperature coeffcient; (7)low threshold voltage; (8)low tail current with low tmperature dependence.

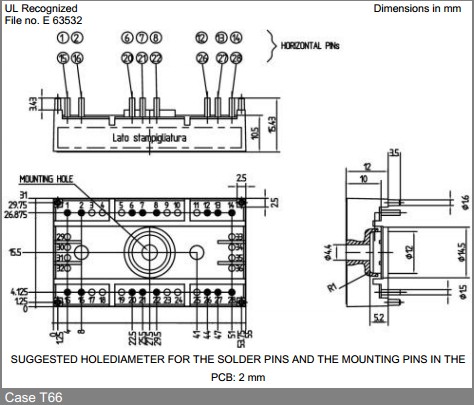

Diagrams
