SM32C6416TGLZI1EP

SM32C6416TGLZI1EP, GLZ BGA, fixed-point digital signal processor, 0.5 V to 1.5 V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.30~2.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	2.50 / Piece
101 ~ 500 :	2.40 / Piece
501 ~ 1000 :	2.30 / Piece

PartNumber:: SM32C6416TGLZI1EP

Brand:: Texas Instruments - TI | Pack: | D/C:

Availability:: Supply Ability: 8000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Dannie's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-10-21

From Other Seller

Part Number:SM32C6416TGLZI1EP
US $2.30 - 2.50
Quantity:

piece

Product Summary

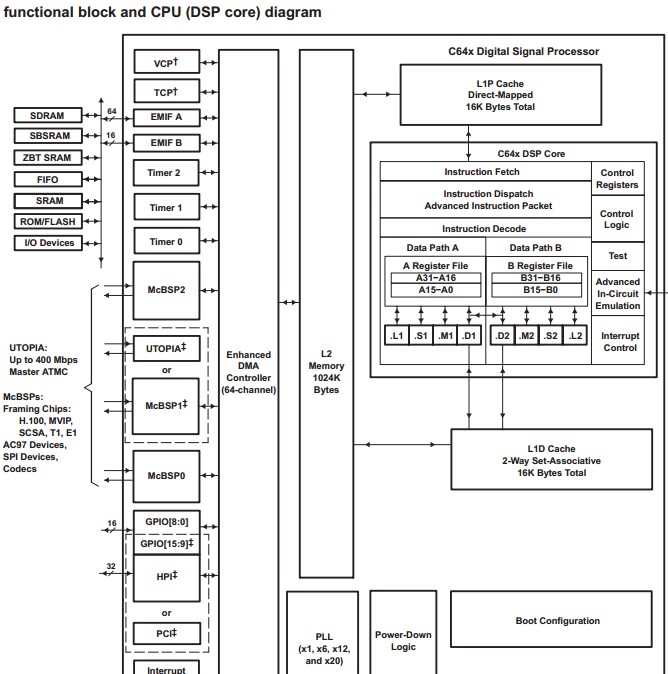

The sm32c6416tglzi1ep is a fixed-point digital signal processor. With performance of up to 8000 million instructions per second (MIPS) at a clock rate of 1 GHz, the C64x devices offer cost-effective solutions to high-performance DSP programming challenges. The C64×DSPs possess the operational flexibility of high-speed controllers and the numerical capability of array processors. The sm32c6416tglzi1ep DSP core processor has 64 general-purpose registers of 32-bit word length and eight highly independent functional units—two multipliers for a 32-bit result and six arithmetic logic units (ALUs). The sm32c6416tglzi1ep can produce four 16-bit multiply-accumulates (MACs) per cycle for a total of 4000 million MACs per second (MMACS), or eight 8-bit MACs per cycle for a total of 8000 MMACS.

Parametrics

sm32c6416tglzi1ep absolute maximum ratings: (1)Supply voltage ranges: CVDD: 0.5 V to 1.5 V ; (2)Input voltage ranges: -0.5 V to 4.4 V; (3)Output voltage ranges: (except PCI), VO: -0.5 V to 4.4 V; (4)Operating case temperature ranges, TC: (A version): -40°Cto 105°C; (5)Storage temperature range, Tstg: -65°C to 150°C.

Features

sm32c6416tglzi1ep features: (1)controlled baseline; (2)extended temperature performance of up to -40°C to 105°C; (3)enhanced diminishing manufacturing sources (dms) support; (4)enhanced product-change notification; (5)highest-performance fixed-point DSPs; (6)two external memory interfaces (EMIFs); (7)instruction set features; (8)enhanced direct-memory-access (edma) controller (64 independent channels); (9)host-port interface (HPI); (10)three multichannel buffered serial ports; (11)three 32-bit general-purpose timers; (12)16 general-purpose I/O (GPIO) Pins; (13)532-Pin Ball Grid Array (BGA) Package (GLZ Suffix), 0,8-mm Ball Pitch.
