Product Summary
The stm8af51aata/c is an Automotive 8-bit MCU, with up to 128 Kbytes Flash, data EEPROM, c ADC, timers, LIN, CAN, USART, SPI, I2C, 3 to 5.5 V. The system cost is reduced thanks to an integrated true data EEPROM for up to 300 k write/erase cycles and a high system integration level with internal clock oscillators, watchdog, and brown-out reset. Device performance is ensured by 20 MIPS at 24 MHz CPU clock frequency and enhanced characteristics which include robust I/O, independent watchdogs (with a separate clock source), and a clock security system.
Parametrics
stm8af51aata/c absolute maximum ratings: (1)VDDx - VSS, Supply voltage (including VDDA and VDDIO): -0.3 to 6.5V; (2)VIN, Input voltage on true open drain pins (PE1, PE2): VSS - 0.3 to 6.5V; (3)Input voltage on any other pin: VSS - 0.3 to VDD + 0.3V; (4)|VDDx - VDD|Variations between different power pins: 50mV; (5)|VSSx - VSS|Variations between all the different ground pins: 50mV.
Features
stm8af51aata/c features: (1)Advanced STM8A core with Harvard architecture and 3-stage pipeline; (2)Average 1.6 cycles/instruction resulting in 10 MIPS at 16 MHz fCPU for industry standard benchmark; (3)Program memory: 32 to 128 Kbytes Flash program; data retention 20 years at 55 °C; (4)Data memory: up to 2 Kbytes true data EEPROM; endurance 300 kcycles; (5)RAM: 2 Kbytes to 6 Kbytes; (6)Low-power crystal resonator oscillator with external clock input; (7)Internal, user-trimmable 16 MHz RC and low-power 128 kHz RC oscillators; (8)Clock security system with clock monitor; (9)Wait/auto-wakeup/Halt low-power modes with user definable clock gating; (10)Low consumption power-on and power-down reset; (11)Nested interrupt controller with 32 vectors; (12)Up to 37 external interrupts on 5 vectors.

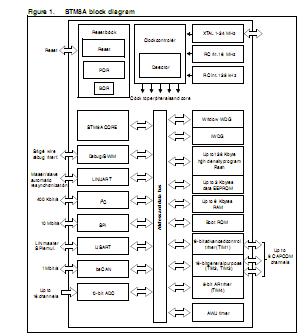

Diagrams
