Product Summary
The tca0372dp1g is a monolithic circuit intended for use as a power operational amplifier in a wide range of applications, including servo amplifiers and power supplies. No deadband crossover distortion provides better performance for driving coils.
Parametrics
tca0372dp1g absolute maximum ratings: (1)Supply Voltage (from VCC to VEE) VS: 40 V; (2)Junction Temperature (Note 2) TJ :+150°C; (3)Operating Temperature Range TA: -40 to +125°C; (4)Storage Temperature Range Tstg: 55 to +150°C; (5)DC Output Current IO: 1.0 A; (6)Peak Output Current (Nonrepetitive) I(max): 1.5 A.
Features
tca0372dp1g features: (1)output current to 1.0 a; (2)lew rate of 1.3 V/μs; (3)wide bandwidth of 1.1 MHz; (4)internal thermal shutdown; (5)single or split supply operation; (6)excellent gain and phase margins; (7)common mode input includes ground; (8)zero deadband crossover distortion; (9)pb-free packages are available.

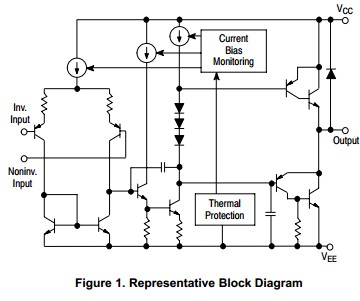

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TCA0372DP1G |
ON Semiconductor |
Operational Amplifiers - Op Amps 5-40V 1A Output Extended Temp |
Data Sheet |
|
|
||||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||||
 |
TCA0372 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||||
|
TCA0372B |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||||
|
TCA0372BDP1 |
ON Semiconductor |
Operational Amplifiers - Op Amps 5-40V 1A Output |
Data Sheet |
Negotiable |
|
||||||||||||||
|
TCA0372BDP1G |
ON Semiconductor |
Operational Amplifiers - Op Amps 5-40V 1A Output Extended Temp |
Data Sheet |
|
|
||||||||||||||
|
TCA0372BDWR2 |
ON Semiconductor |
Operational Amplifiers - Op Amps 5-40V 1A Output |
Data Sheet |
Negotiable |
|
||||||||||||||
|
TCA0372BDWR2G |
ON Semiconductor |
Operational Amplifiers - Op Amps 5-40V 1A Output Extended Temp |
Data Sheet |
|
|
||||||||||||||
