Product Summary

The UCN5801A is a BiMOS II latched driver. The UCN5801A merges high-current, high-voltage outputs with CMOS logic. The UCN5801A supersedes the original BiMOS latched-input driver ICs (UCN4400A and UCN4801A). The UCN5801A is compatible with standard CMOS and NMOS circuits.

Parametrics

UCN5801A absolute maximum ratings: (1) Output Voltage, VCE: 50V; (2) Supply Voltage, VDD Input Voltage Range, VIN: -0.3 to VDD +0.3V; (3) Continuous Collector Current, IC: 500mA; (4) Operating Temperature Range, TA: -20 to +85°C; (5) Storage Temperature Range, Ts: -55 to +150°C.

Features

UCN5801A features: (1) To 4.4 MHz Data Input Rate; (2) High-Voltage, High-Current Outputs; (3) CMOS, NMOS, TTL Compatible Inputs; (4) Output Transient Protection; (5) Internal Pull-Down Resistors; (6) Low-Power CMOS Latches; (7) Automotive Capable.

Diagrams

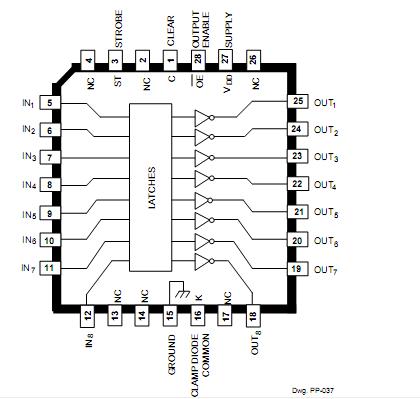

UCN5801A Circuit
