W681310RG

W681310RG, single channel PCM codec, 0.3 V, 20 mA, 300 Ω, SSOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.20~2.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	2.50 / Piece
101 ~ 800 :	2.40 / Piece
801 ~ 1600 :	2.20 / Piece

PartNumber:: W681310RG

Brand:: Winbond - Winbond | Pack: | D/C:

Availability:: Supply Ability: 8000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Dannie's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-23

From Other Seller

Part Number:W681310RG
US $2.20 - 2.50
Quantity:

piece

Product Summary

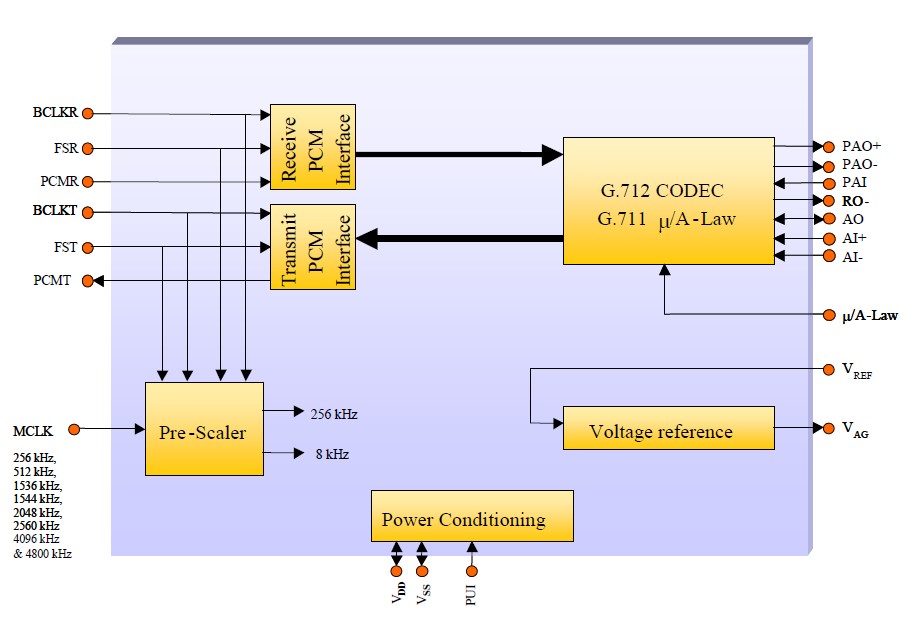

The W681310RG is a general-purpose single channel PCM codec with pin-selectable μ-Law or A-Law companding. The W681310RG is compliant with the ITU G.712 specification. It operates from a single +3V power supply and is available in 20-pin SOG, SSOP and TSSOP package options. Functions performed include digitization and reconstruction of voice signals, and band limiting and smoothing filters required for PCM systems. The W681310RG performance is specified over the industrial temperature range of –40°C to +85°C. ApplIcations are (1)VoIP, voice over networks; (2)Digital telephone and communication systems; (3)Wireless voice devices; (4)PABX/SOHO systems; (5)Local loop card; (6)SOHO routers; (7)Fiber-to-curb equipment; (8)Enterprise phones; (9)ISDN equipment; (10)Modems/PC cards; (11)Digital voice recorders.

Parametrics

W681310RG absolute maximum ratings: (1)Junction temperature: 150 ℃; (2)Storage temperature range: -65 ℃ to +150 ℃; (3)Voltage applied to any pin: (VSS - 0.3V)to (VDD + 0.3V); (4)Voltage applied to any pin (Input current limited to +/-20 mA): (VSS – 1.0V)to (VDD + 1.0V); (5)VDD - VSS: -0.5V to +6V.

Features

W681310RG features: (1)Single +3V power supply (2.7V to 5.25V); (2)Typical power dissipation of 10 mW, power-down mode of 0.5 μW; (3)Fully-differential analog circuit design; (4)On-chip precision reference of 0.886 V for a -5 dBm TLP at 600 Ω; (5)Push-pull power amplifiers with external gain adjustment with 300 Ω load capability; (6)Eight master clock rates of 256 kHz to 4.800 MHz; (7)Pin-selectable μ-Law and A-Law companding (compliant with ITU G.711); (8)CODEC A/D and D/A filtering compliant with ITU G.712; (9)Industrial temperature range (–40°C to +85°C); (10)Packages: 20-pin SOG (SOP), SSOP and TSSOP; (11)Pb-Free package options available.
