Product Summary

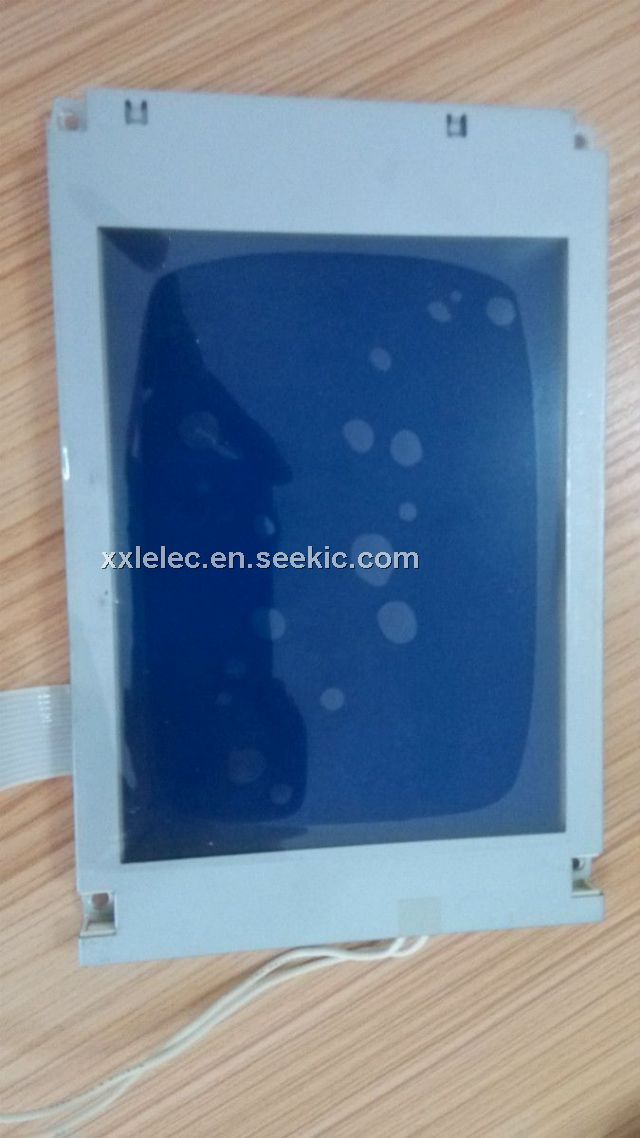

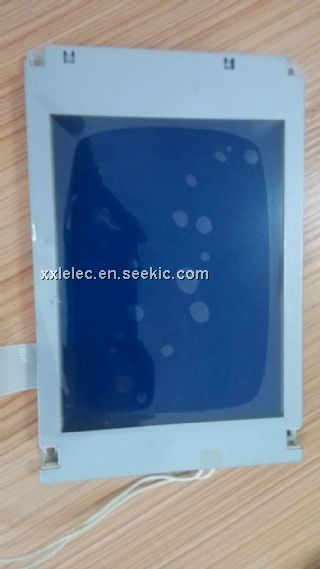

The SP14Q002 is a 5.7 inch LCD display.
Parametrics
SP14Q002 absolute maximum ratings: (1)Power supply for logic VDD-VSS: 6 V; (2)Power supply for LC driving VDD-VEE: 27.5 V; (3)Input signal voltage Vi: -0.3 VDD+0.3 V; (4)Input signal current Ii: 1 A; (5)Static electricity VESD0: ±100 V.
Features
SP14Q002 features: (1)Part name SP14Q002; (2)Module size: 167.0(W)mm×109.0(H)mm×10.0 (D)mm (max.); (3)Effective display area 120 mm min×89 mm min; (4)Dot size 0.345(W)min.×0.345(H)min; (5)Dot pitch 0.360(W)mm×0.360(H)mm; (6)Dot number 320 (W)×240 (H); (7)Duty ratio 1/240; (8)Viewing direction 6 O CLOCK; (9)Back light cold cathode fluorescent lamp.
