Product Summary
The LTM190EP01 is a color active matrix liquid crystal display(LCD) that uses amorphous silicon TFT(ThinFilm Transistor) as switching components. This model is composed of a TFT LCD panel, a driver circuit and a back light unit. The resolution of a 19.0”is 1280 x 1024 and this model can display up to 16.7 millions colors. The applications of the LTM190EP01 are (1)Workstation &desktop monitors; (2)Display terminals for AV application products; (3)Monitors for industrial machine.
Parametrics
LTM190EP01 absolute maximum ratings: (1)VDD Power Supply Voltage: 6.5 to GND-0.5V; (2)Vnop Vibration ( non -operating ): 1.5G; (3)Snop Shock ( non -operating ) : 50G; (4)Glass surface temperature, TOPR : o to 50°C; (5)TSTG Storage temperature: -20 to 60°C.
Features
LTM190EP01 features: (1)High contrast ratio, high aperture structure; (2)PVA (Plus Viewing Angle) mode; (3)Wide Viewing Angle; (4)High speed response (DCC Technology); (5)SXGA (1280 x 1024 pixels) resolution; (6)Low power consumption; (7)2 dual CCFTs(Cold Cathode Fluorescent Tube); (8)DE (Data Enable) only mode; (9)LVDS (Low Voltage Differential Signaling) interface (2pixel/clock); (10)Compact Size Design; (11)RoHS, TCO-03 compliance.

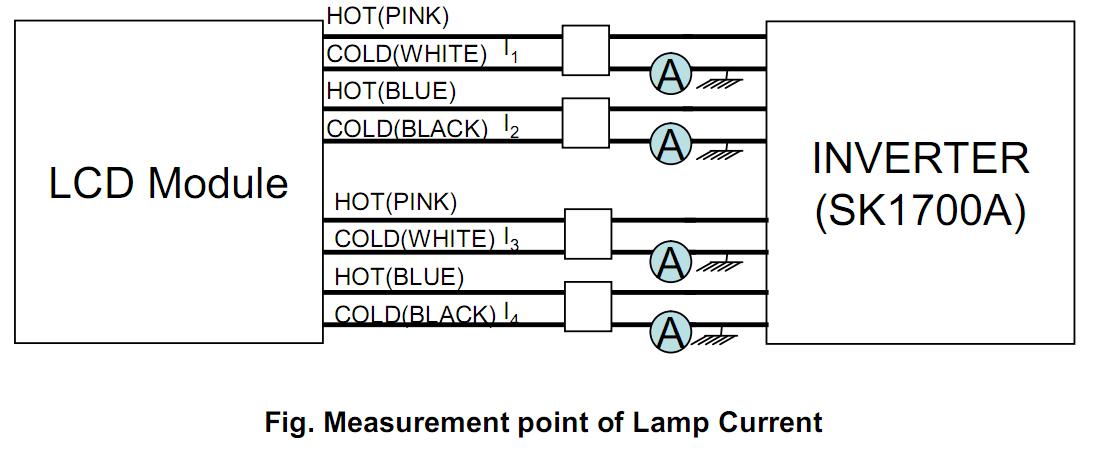

Diagrams
