Product Summary

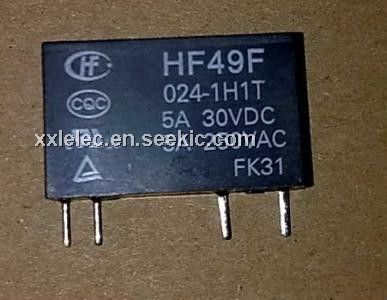

The HF49F/024-1H1T is a miniature power relay.
Parametrics
HF49F/024-1H1T absolute maximum ratings: (1)insulation resistance: 1000 MΩ; (2)between coil & contacts: 2000 VAC; (3)between open contacts: 1000 VAC ; (4)operate time: 10 ms; (5)release time: 5 ms; (6)functional: 100 m/s; (7)destructive: 1000 m/s; (8)vibration resistance: 10 to 55 HZ; (9)Humidity: 5 to 85 % RH; (10)ambient temperature: -40 to 85 ℃; (11)termination: PCB; (12)unit weight: approx.3g; (13)construction: wash tight.
Features

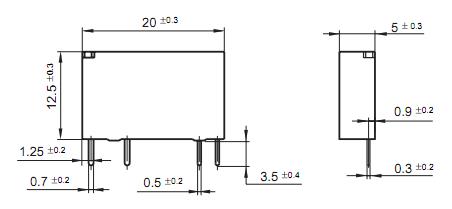

HF49F/024-1H1T features: (1)5A switchng capability; (2)2kv dielectric strength; (3)Slim size; (4)High sensitive: Min. 120 mw; (5)HF49FA’s size and terminals compatible with HFS8; (6)Sockets available; (7)Environmental friendly product; (8)Outline Dimensions: 20.0 × 5.0 × 12.5 mm.
Diagrams
