Product Summary

The SKIIP83AC12IST2 is an integrated intelligent power system.

Parametrics

SKIIP83AC12IST2 absolute maximum ratings: (1)vces: 1200 v; (2)vcc: 900 v; (3)vges: 20 v; (4)ic: 800 A; (5)if: 800 A; (6)ifsm: 5760 A; (7)it: 166 kas; (8)tj: -40 to 150 ℃; (9)visol: 3000 v.

Features

SKIIP83AC12IST2 features: (1)SKIIP technology inside ; (2)Low loss IGBTS; (3)CAL diodel technology; (4)Integrated current sensor; (5)Integrated heat sink; (6)IEC 60721-3-3 class; (7)IEC 68T.1.

Diagrams

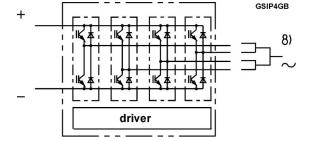

SKIIP83AC12IST2 block diagram
