Product Summary
The LTM150XI-A01 is a new concept of system-on-panel (SOP) display device. The LTM150XI-A01 provides total and high quality TFT-LCD display solutions for customer system design. Customer can use the high quality display unit just like an integrated circuit (IC).
Parametrics
LTM150XI-A01 absolute maximum ratings: (1)Hprizontal: 331.1 to 332.1 mm; (2)Vertical: 254.8 to 255.8 mm; (3)Depth: 18 mm; (4)Weight: 1800 g; (5)Power supply voltage: -0.3 to 21 v; (6)Storage temperature: -2.5 to 60 ℃; (7)Operating temperature: 0 to 50 ℃; (8)Shock: 50 G ; (9)Vibration: 1.5 G.
Features
LTM150XI-A01 features: (1)High display quality: High contrast ratio, Wide-viewing angle and High-speed response time; (2)High brightness with the 4-CCFL blacklight lamps using optimized inverter; (3)Standard interface: Analog RGB; (4)On Screen Display(OSD): Samsung generic bimap OSD is supprted, but the customized OSD is also available using system development tool; (5)Digital Image Processor is embedded with intelligent microprocessor; (6)Wide Input Voltage Range: +10VDC to +15VDC; (7)DDC Ver. 2 Compliance by system integrator; (8)VESA DPMS compliance; (9)Low PoWER Consumption; (10)Easier EMI troubleshooting and solution supported; (11)Esay Lamp replacement.

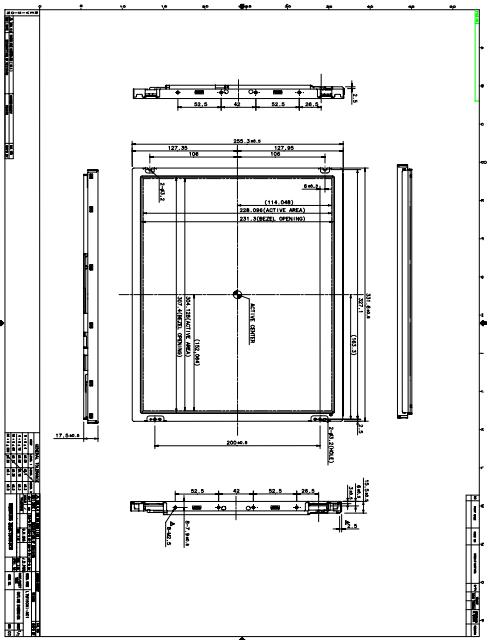

Diagrams
