Product Summary

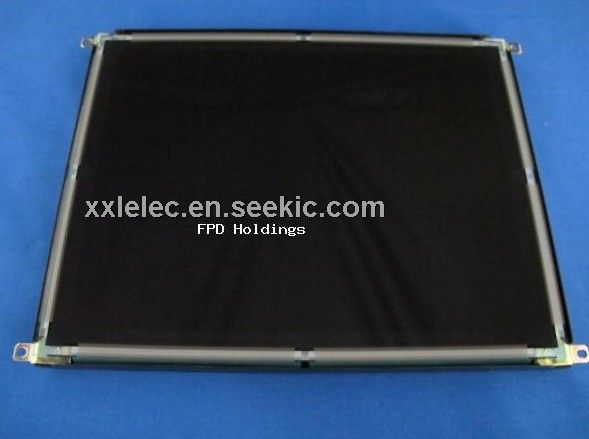

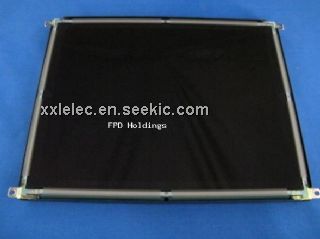

The NEL640-480-AD4(1) is a solid-state device with a thin film luminescent layer sandwiched between transparent dielectric layers and a matrix of row and column elec-trodes. The row electrodes, in back, are aluminium; the column electrodes, in front, are transparent. The entire thin film device is deposited on a single glass substrate. The NEL640-480-AD4(1) is mounted with an elastic spacer to an assembly support carrying the electronic circuit assem-bly board (ECA) mounted on the support. The driver electronics is connected to the NEL640-480-AD4(1) with soldered lead frame interconnects. The result is a flat, compact, reliable and rugged display device.

Parametrics

NEL640-480-AD4(1) absolute maximum ratings: (1)Logic input HIGH: 2 V; (2)Logic input LOW: 0.8 V; (3)Supply voltage, Vcc2: 11.4 to 13.2 V; (4)Supply current at 12 V, Icc2：1.3 to 2.6 A; (5)Supply current at 12 V LowPow，Icc2：0.9 to 1.5 A.

Features

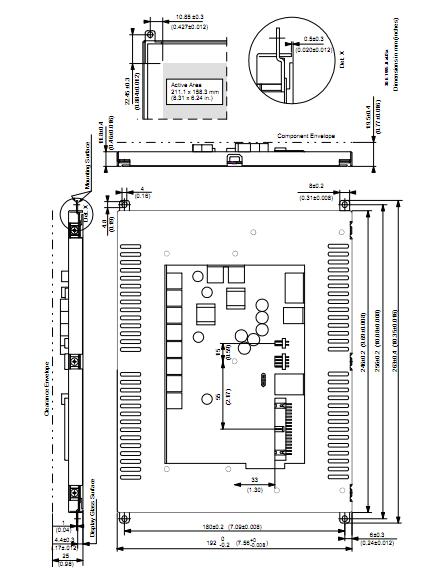

NEL640-480-AD4(1) features: (1)Height: 192 mm, 7.56 in; (2)Width: 263 mm, 10.35 in; (3)Depth: 20 mm, 0.82 in; (4)Weight: 800 g max, 28 oz. max.

Diagrams

NEL640-480-AD4(1) block diagram
