06AR2D

power entry module emi filter, 0.25mA, 2250VDC, 06ar2d, Delta Electronics, Inc

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.20~2.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	2.50 / Piece
101 ~ 800 :	2.40 / Piece
801 ~ 1600 :	2.20 / Piece

PartNumber:: 06AR2D

Brand:: Delta Electronics, Inc. - Delta | Pack: | D/C:

Availability:: Supply Ability: 8000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Dannie's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-23

From Other Seller

Part Number:06AR2D
US $2.20 - 2.50
Quantity:

piece

Product Summary

The 06ar2d is a power entry module emi filter.

Parametrics

06ar2d absolute maximum ratings: (1)Maximum leakage current each; (2)line-to-ground @ 115VAC 60Hz: 0.25mA; @ 250VAC 50Hz: 0.45mA Hipot rating (one minute): line-to-ground: 2250VDC; line-to-line: 1450VDC; (3)Operating frequency: 50/60Hz; (4)Rated voltage: 115/250VAC.

Features

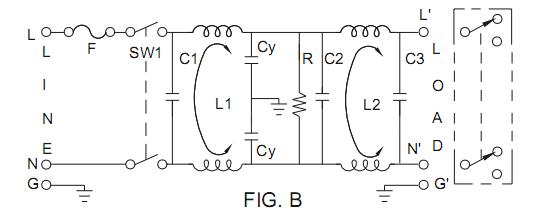

06ar2d features: (1)AR series is designed as a high performance, two-stage filter for low impedance load with better noise attenuation than AK series in low frequency applications such as switching power supplies; (2)Fuse holder designed for one IEC 5x20mm fuse. Safety interlock prevents fuse removal with line plug inserted (Use only with 250V fuse); (3)All part numbers are UL recognized, CSA certified and VDE approved.
