Product Summary

The 10030a is a monolithic triple 5-input OR/NOR gate. All inputs have 50 kΩ pull-down resistors and all outputs are buffered.

Parametrics

10030a absolute maximum ratings: (1)Storage Temperature (TSTG): -65 to +150 ℃; (2)Maximum Junction Temperature (TJ): +150 ℃; (3)VEE Pin Potential to Ground Pin: 7.0V to +0.5V; (4)Input Voltage (DC): VEE to +0.5V; (5)Output Current (DC Output HIGH): -50 mA; (6)ESD (Note 2): ≥2000V.

Features

10030a features: (1)23% power reduction of the 10030a; (2)2000V ESD protection; (3)Pin/function compatible with 10030a; (4)Voltage compensated operating range = -4.2 V to +5.7 V; (5)Available to industrial grade temperature range.

Diagrams

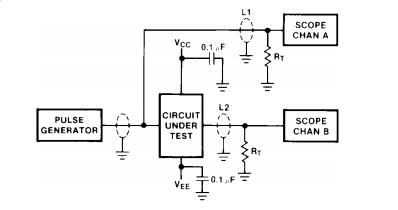

10030a block diagram
