Product Summary

The 55482-0239 is a 1.25mm (.049") Pitch Mini Mi II Wire-to-Wire Adapter.

Parametrics

55482-0239 general specifications: (1)Circuits (Loaded): 2; (2)Color - Resin: Natural; (3)Gender: Male; (4)Material - Metal: Brass; (5)Material - Plating Mating: Tin; (6)Material - Plating Termination: Tin; (7)Material - Resin: Nylon; (8)Number of Rows: 1; (9)Packaging Type: Bag; (10)Plating min: Mating (µin): 40; (11)Plating min: Mating (µm): 1.00; (12)Plating min: Termination (µin): 40; (13)Plating min: Termination (µm): 1.00; (14)Temperature Range - Operating: -20°C to +80°C; (15)Current - Maximum per Contact: 1.5A.

Features

55482-0239 features: (1)Product Family Accessories; (2)Series 55482; (3)Component Type Adapter; (4)Overview mini_mi_ii; (5)Product Name Mini Mi II.

Diagrams

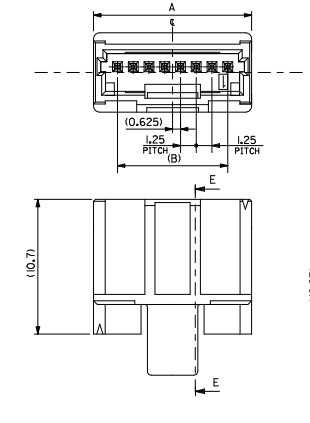

55482-0239 package dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
55482-0239
55482-0239
Molex
I/O Connectors Mini Mi2 1RowRelayWa ferAssyW/OPnlMut2Ckt
Data Sheet
0-1: $0.13
1-10: $0.11
10-100: $0.09
100-500: $0.08
