Product Summary

The 74HC27D is a high-speed Si-gate CMOS device and is pin compatible with Low-Power Schottky TTL (LSTTL). The 74HC27D provides the 3-input NOR function.

Parametrics

74HC27D absolute maximum ratings: (1)supply voltage, VCC: -0.5 to +7 V; (2)input clamping current VI < -0.5 V or VI > VCC + 0.5 V, IIK: ±20 mA; (3)output clamping current VO < -0.5 V or VO > VCC + 0.5 V, IOK: ±20 mA; (4)output current -0.5 V < VO < VCC + 0.5 V, IO: ±25 mA; (5)supply current, ICC: 50 mA; (6)ground current, IGND: -50mA; (7)storage temperature, Tstg: -65 to +150℃.

Features

74HC27D features: (1)Multiple package options; (2)Complies with JEDEC standard no. 7A; (3)ESD protection: HBM JESD22-A114E exceeds 2000 V; MM JESD22-A115-A exceeds 200 V; (4)Specified from -40℃ to +85℃ and from -40℃ to +125℃.

Diagrams

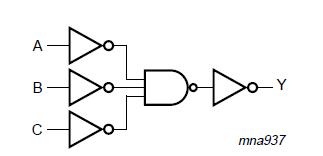

74HC27D block diagram
