Product Summary
The 74VHC138MTCX is an advanced high speed CMOS 3-to-8 decoder/demultiplexer fabricated with silicon gate CMOS technology. The 74VHC138MTCX achieves the high speed operation similar to equivalent Bipolar Schottky TTL while maintaining the CMOS low power dissipation. When the 74VHC138MTCX is enabled, 3 binary select inputs (A0, A1 and A2) determine which one of the outputs (O0–O7) will go LOW. When enable input E3 is held LOW or either E1 or E2 is held HIGH, decoding function is inhibited and all outputs go HIGH. E3, E1 and E2 inputs are provided to ease cascade connection and for use as an address decoder for memory systems.
Parametrics
74VHC138MTCX absolute maximum ratings: (1)Supply Voltage (VCC): -0.5V to +7.0V; (2)DC Input Voltage (VIN): -0.5V to +7.0V; (3)DC Output Voltage (VOUT): -0.5V to VCC + 0.5V; (4)Input Diode Current (IIK): -20 mA; (5)Output Diode Current (IOK): ±20 mA; (6)DC Output Current (IOUT): ±25 mA; (7)DC VCC/GND Current (ICC): ±75 mA; (8)Storage Temperature (TSTG): -65℃ to +150℃; (9)Lead Temperature (TL) (Soldering, 10 seconds): 260℃.
Features
74VHC138MTCX features: (1)High Speed: tPD = 5.7ns (typ) at TA = 25℃; (2)Low power dissipation: ICC = 4 mA (max.) at TA = 25℃; (3)High noise immunity: VNIH = VNIL = 28% VCC (min.); (4)Power down protection provided on all inputs; (5)Pin and function compatible with 74HC138.

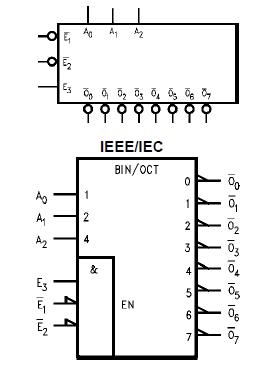

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 74VHC138MTCX |
Fairchild Semiconductor |
Encoders, Decoders, Multiplexers & Demultiplexers 3to8 Decoder/Demult |
Data Sheet |
|
|
||||||||||||
 |
74VHC138MTCX_NL |
Fairchild Semiconductor |
Encoders, Decoders, Multiplexers & Demultiplexers FINISHED GOOD |
Data Sheet |
Negotiable |
|
||||||||||||
