Product Summary

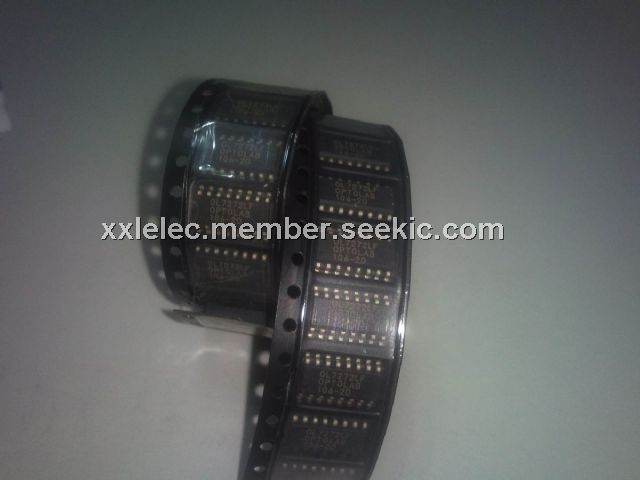

The OL7272LF is an industrial power line driver and contains four identical short circuit proof differential line drivers up to 30 Volts driver supply with a joint enable function. An internal 5 V power supply is used as reference and supply voltage for the circuitry and is able to supply max. 5mA for external 5V components like a sensor or a constant current source for a LED. The very small outline TSSOP package gives excellent thermal power dissipation, thus the usage in space limited applications is easy. The applications of the OL7272LF include Industrial encoder interfacing, Industrial sensor interfacing, Proximity switches, Industrial controllers, Light barriers.
Parametrics
OL7272LF absolute maximum ratings: (1)DC supply voltage, VCCD: -0.3 to 36.0 V; (2)DC input voltage, VIN: -0.3 to VCC +0.3 V; (3)DC input current, IIN: ±10 mA; (4)Output voltage, VOUT: -0.3 to VCC +0.3 V; (5)Driver output current IOUT pulse peak/average: 1500/100 mA; (6)Storage and operating temperature range, TSTGOP: -55 to +125℃; (7)Junction temperature, TJ: +150℃; (8)Lead temperature, TL: +260℃; (9)Power dissipation: Rth j-a = 111.8 K/W, PD: 581 mW.
Features
OL7272LF features: (1)Ultra small package TSSOP 20; (2)Max. voltage range from 4,5 V – 36 V; (3)Short circuit proof tri-state outputs drive up to 120mA sink / source; (4)Operating frequency up to 4 MHz; (5)Integrated voltage reg. with 5V output; (6)Dynamic peak current up to 1,5 Amp.; (7)High impedance CMOS / TTL compatible buffered inputs with hysteresis; (8)Outputs RS422A compatible; (9)RoHS conform.
Diagrams
