Product Summary

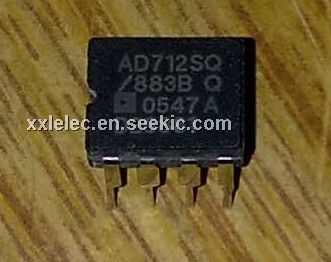

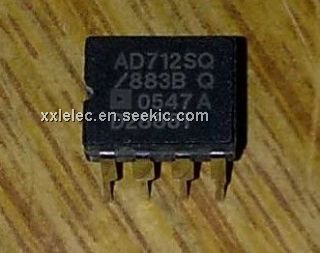

The AD712SQ883 is a high speed, precision monolithic operational amplifier offering high performance at very modest price. The AD712SQ883 is very low offset voltage and offset voltage drift are the results of advanced laser wafer trimming technology. The AD712SQ883 is performance benefits allow the user to easily upgrade existing designs that use older precision BiFETs and, in many cases, bipolar op amps.
Parametrics
AD712SQ883 absolute maximum ratings: (1)Supply Voltage: ±18 V; (2)Internal Power Dissipation; (3)Input Voltage3: ±18 V; (4)Output Short Circuit Duration: Indefinite; (5)Differential Input Voltage: +VS and –VS; (6)Storage Temperature Range: –65°C to +150°C; (7)Storage Temperature Range: –65°C to +125°C; (8)Lead Temperature Range (Soldering 60 sec): +300°C.
Features
AD712SQ883 features: (1)Settles to 60.01% in 1.0 ms; (2)16 V/ms min Slew Rate; (3)3 MHz min Unity Gain Bandwidth; (4)0.30 mV max Offset Voltage; (5)5 mV/8C max Drift; (6)200 V/mV min Open-Loop Gain; (7)4 mV p-p max Noise, 0.1 Hz to 10 Hz.

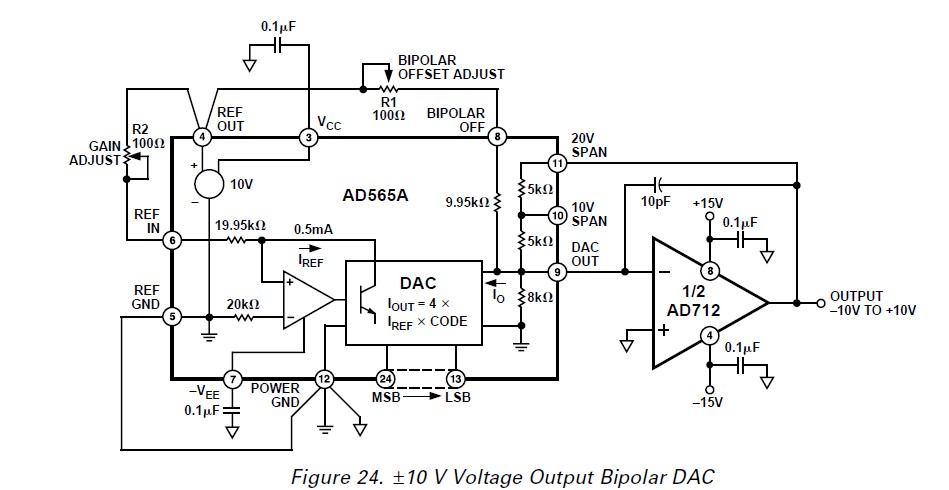

Diagrams
