Product Summary

The AD7237JN is a 12-Bit D/A Converter. Improvements include operation from 12 V to 15 V supplies, faster interface times and better reference variations with VDD. Additional features include faster settling times. The AD7237JN is a complete, dual, 12-bit, voltage output digital-to-analog converter with output amplifiers and Zener voltage reference on a monolithic CMOS chip. No external user trims are required to achieve full specified performance.

Parametrics

AD7237JN absolute maximum ratings: (1)VDD to AGND, DGND: -0.3 V to +17 V; (2)VDD to VSS: -0.3 V to +34 V; (3)AGND to DGND: -0.3 V, VDD +0.3 V; (4)VOUTA, VOUTB to AGND (GND): VSS -0.3 V to VDD +0.3 V; (5)REF OUT to AGND (GND): 0 V to VDD; (6)REF IN to AGND (GND): -0.3 V to VDD +0.3 V; (7)Digital Inputs to DGND (GND): -0.3 V to VDD +0.3 V; (8)Operating Temperature Range, Industrial (A, B Versions): -40℃ to +85℃; Extended (T Version): -55℃ to +125℃; (9)Storage Temperature Range: -65℃ to +150℃; (10)Lead Temperature (Soldering, 10 secs): +300℃; (11)Power Dissipation (Any Package) to +75℃: 1000 mW; (12)Derates above +75℃ by: 10 mW/℃.

Features

AD7237JN features: (1)Complete Dual 12-Bit DAC Comprising: Two 12-Bit CMOS DACs; On-Chip Voltage Reference; Output Amplifiers; Reference Buffer Amplifiers; (2)Improved AD7237/AD7247: 12 V to 15 V Operation; (3)Faster Interface –30 ns typ Data Setup Time; (4)Parallel Loading Structure: AD7247A; (5)(8+4) Loading Structure: AD7237A; (6)Single or Dual Supply Operation; (7)Low Power—165 mW typ in Single Supply.

Diagrams

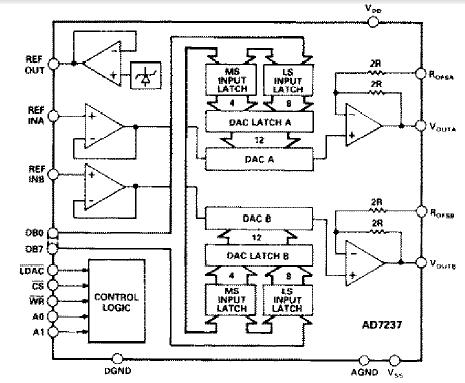

AD7237JN block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

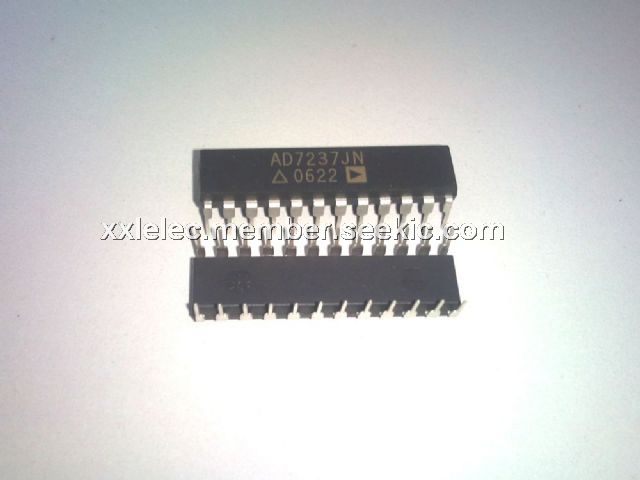

AD7237JN
AD7237JN
Analog Devices Inc
IC DAC 12BIT LC2MOS DUAL 24-DIP
Data Sheet
1-15: $16.62
AD7237JNZ
AD7237JNZ

IC DAC 12BIT LC2MOS DUAL 24-DIP
Data Sheet
0-1: $17.78
1-10: $16.44
10-100: $14.04
100-250: $12.89
250-500: $12.27
500-1000: $11.85
