Product Summary
The LM4890M is an audio power amplifier primarily designed for demanding applications in mobile phones and other portable communication device applications. Its package is MSOP8.
Parametrics
LM4890M absolute maximum ratings: (1)Supply Voltage: 6.0V; (2)Storage Temperature: -65℃ to +150℃; (3)Input Voltage: -0.3V to VDD +0.3V; (4)Power Dissipation: Internally Limited; (5)ESD Susceptibility: 2000V; (6)Junction Temperature: 150℃.
Features
LM4890M features: (1)Available in space-saving packages: micro SMD, MSOP, SOIC, and LLP; (2)Ultra low current shutdown mode; (3)BTL output can drive capacitive loads; (4)Improved pop & click circuitry eliminates noises during turn-on and turn-off transitions; (5)2.2 - 5.5V operation; (6)No output coupling capacitors, snubber networks or bootstrap capacitors required; (7)Thermal shutdown protection; (8)Unity-gain stable; (9)External gain configuration capability.

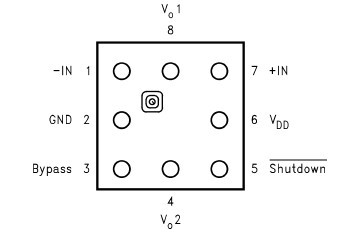

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM4890M/NOPB |
National Semiconductor (TI) |
Audio Amplifiers 1W Audio Power Amp |
Data Sheet |
|
|
||||||||||||
 |
LM4890MBD |
|
BOARD EVALUATION LM4890M |
Data Sheet |
|
|
||||||||||||
|
LM4890MM |
National Semiconductor (TI) |
Audio Amplifiers |
Data Sheet |
|
|
||||||||||||
|
LM4890MM/NOPB |
National Semiconductor (TI) |
Audio Amplifiers |
Data Sheet |
|
|
||||||||||||
|
LM4890MMBD |
|
BOARD EVALUATION LM4890MM |
Data Sheet |
|
|
||||||||||||
|
LM4890MMX |
National Semiconductor (TI) |
Audio Amplifiers |
Data Sheet |
|
|
||||||||||||
|
LM4890MMX/NOPB |
National Semiconductor (TI) |
Audio Amplifiers |
Data Sheet |
|
|
||||||||||||
|
LM4890MX/NOPB |
National Semiconductor (TI) |
Audio Amplifiers |
Data Sheet |
|
|
||||||||||||
