Product Summary

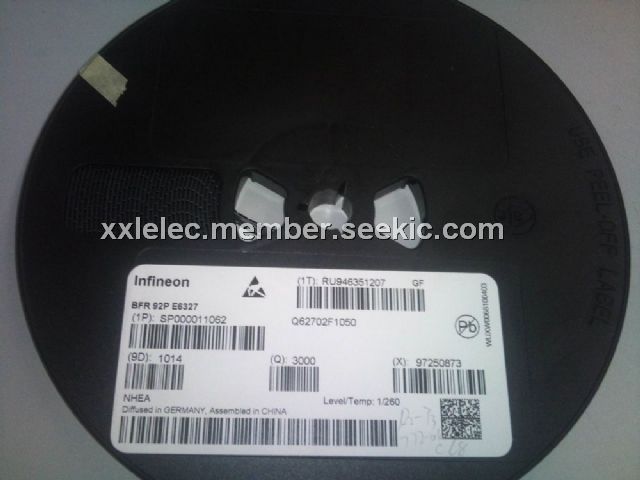

The BFR92P is an NPN Silicon RF Transistor.
Parametrics
BFR92P absolute maximum ratings: (1)Collector-emitter voltage, VCEO: 15 V; (2)Collector-emitter voltage, VCES: 20V; (3)Collector-base voltage, VCBO: 20V; (4)Emitter-base voltage, VEBO: 2.5V; (5)Collector current IC: 30 mA; (6)Base current, IB: 4mA; (7)Total power dissipation, TS ≤ 48℃), Ptot: 280 mW; (8)Junction temperature, Tj: 150℃; (9)Ambient temperature, TA: -65 to 150℃; (10)Storage temperature, Tstg: -65 to 150℃.
Features
BFR92P features: (1)For broadband amplifiers up to 2 GHz and fast non-saturated switches at collector currents from 0.5 mA to 20 mA; (2)Complementary type: BFT 92 (PNP).
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BFR92P |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
|
BFR92 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
BFR92A |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
BFR92A,215 |
NXP Semiconductors |
Transistors RF Bipolar Small Signal NPN 25MA 15V 5GHZ |
Data Sheet |
|
|
||||||||||||
|
BFR92A,235 |
NXP Semiconductors |
Transistors RF Bipolar Small Signal Single NPN 15V 25mA 300mW 65 5GHz |
Data Sheet |
|
|
||||||||||||
|
BFR92AF |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
BFR92ALT1 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
