Product Summary
The BGY132 is a stage amplifer module. It comprises two NPN silicon planar transistor chips together with lumped-element matching components. The applications of the BGY132 include mobile communication equipment.
Parametrics
BGY132 absolute maximum ratings: (1)VSI, DC supply voltage: 15.6V; (2)VS2, DC supply voltage: 15.6V; (3)Vi, RF input terminal voltage: 25V; (4)Vo, RF ouput terminal voltage: 25V; (5)PD, input drive power: 200mW; (6)PL, load power: 25W; (7)Tstg, storage temperature: -40 to 100℃; (8)Tmb, operating mounting base temperature: -20 to 90℃.
Features
BGY132 features: (1)broadband VHF amplifiers; (2)18W output power; (3)operate directly from 12V vehicle electrical systems; (4)output power control over a 10dB range by drive power.

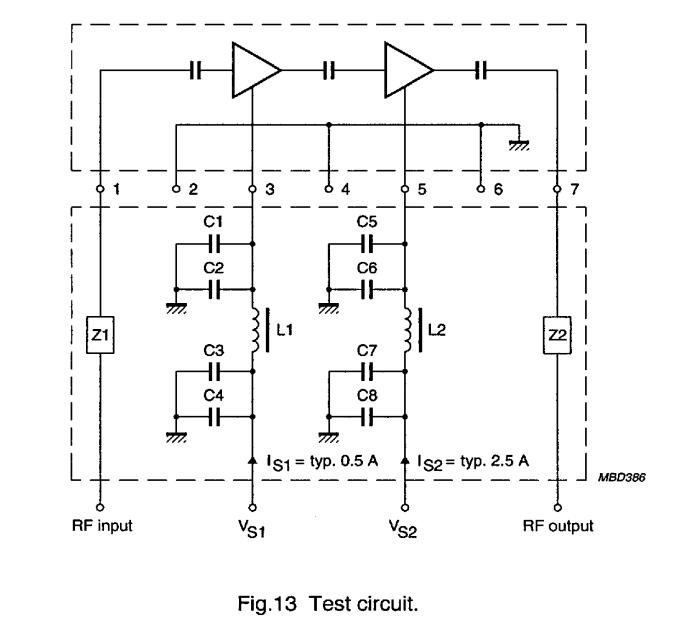

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BGY132 |
Other |
Data Sheet |
Negotiable |
|
||||||||||||
