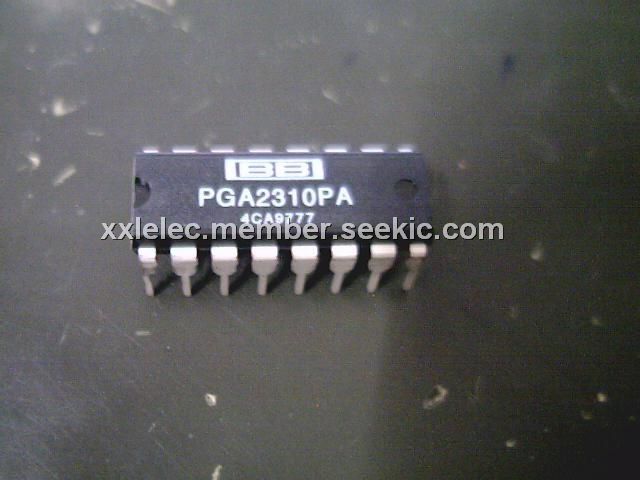

Product Summary
The PGA2310PA is a high-performance, stereo audio volume control designed for professional and high-end consumer audio systems. The ability to operate from ±15V analog power supplies enables the PGA2310PA to process input signals with large voltage swings, thereby preserving the dynamic range available in the overall signal path. Using high performance operational amplifier stages internal to the PGA2310PA yields low noise and distortion, while providing the capability to drive 600Ω loads directly without buffering. The three-wire serial control interface allows for connection to a wide variety of host controllers, in addition to support for daisy-chaining of multiple PGA2310PA devices. The applications of the PGA2310PA include audio amplifiers, mixing consoles, multi-track recorders, broadcast studio equipment, musical instruments, effects processors, a/v receivers and car audio systems.
Parametrics
PGA2310PA absolute maximum ratings: (1)Supply voltage, VA+: +16.0 V; VA-: -16.0 V; VD+: +6.5 V; (2)Analog input voltage: 0 to VA+, VA- V; (3)Digital input voltage: -0.3 to VD+ V; (4)Operating temperature range: -55 to +125℃; (5)Storage temperature range: -65 to +150℃; (6)Junction temperature: +150℃; (7)Lead temperature (soldering, 10s): +300℃; (8)Package temperature (IR, reflow, 10s): +235℃.
Features
PGA2310PA features: (1)digitally-controlled analog volume control: Two Independent Audio Channels, Serial Control Interface, Zero Crossing Detection, Mute Function; (2)wide gain and attenuation range: +31.5dB to -95.5dB with 0.5dB Steps; (3)low noise and distortion: 120dB Dynamic Range 0.0004% THD+N at 1kHz; (4)low interchannel crosstalk: -126dBFS; (5)noise-free level transitions; (6)power supplies: ±15V Analog, +5V Digital; (7)available in DIP-16 and SOL-16 packages; (8)pin and software compatible with the pga2311 and cirrus logic CS3310.

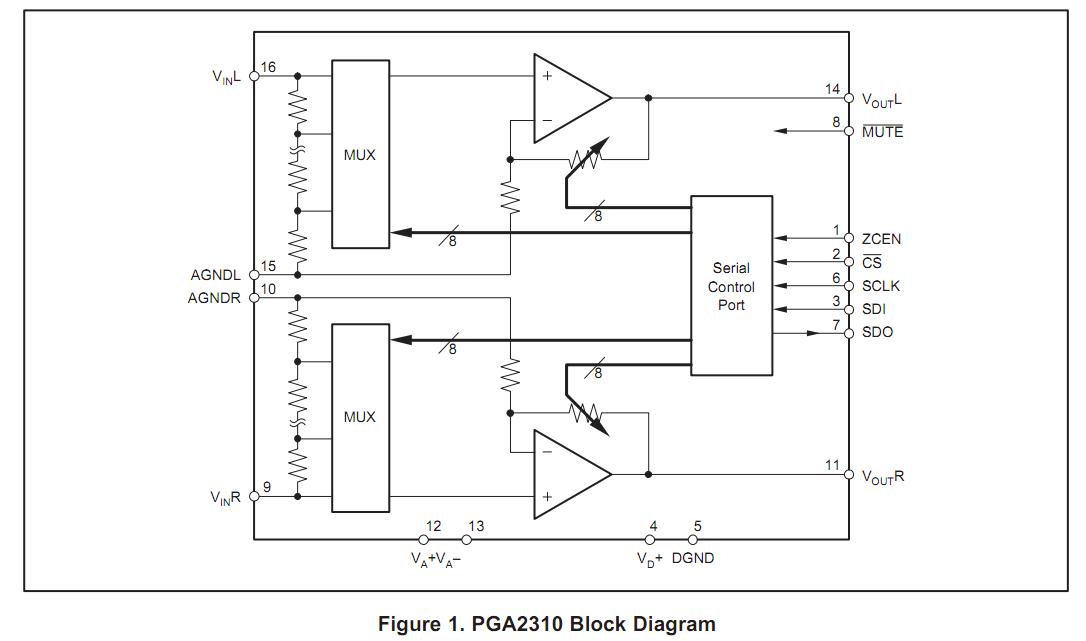

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PGA2310PA |
Texas Instruments |
Audio Amplifiers AUDIO VOLUME CONTROL |
Data Sheet |
|
|
||||||||||||
|
PGA2310PAG4 |
Texas Instruments |
Audio Amplifiers AUDIO VOLUME CONTROL |
Data Sheet |
|
|
||||||||||||
