ADV601LCJSTZ

ADV601LCJSTZ, all digital CMOS VLSI device, 7 V, 0.27 A, 37 ns, QFP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.00~5.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 500 :	5.00 / Piece
501 ~ 1000 :	4.00 / Piece
1001 ~ 3000 :	3.00 / Piece

PartNumber:: ADV601LCJSTZ

Brand:: Analog Devices - ADI | Pack: QFP | D/C: 13+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Dannie's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-08

From Other Seller

Part Number:ADV601LCJSTZ
US $3.00 - 5.00
Quantity:

piece

Product Summary

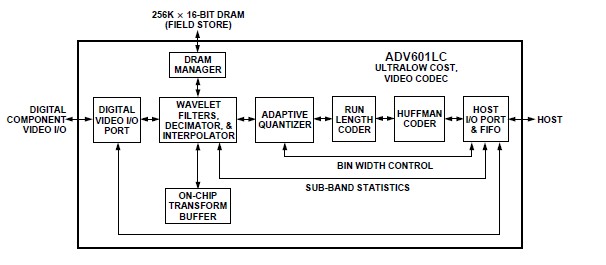

The ADV601LCJSTZ is an ultralow cost, single chip, dedicated function, all digital CMOS VLSI device capable of supporting visually loss-less to 350:1 real-time compression and decompression of CCIR-601 digital video at very high image quality levels. The ADV601LCJSTZ integrates glueless video and host interfaces with on-chip SRAM to permit low part count, system level implementations suitable for a broad range of applications. Applications are (1)PC video editing; (2)remote CCTV surveillance; (3)digital camcorders; (4)digital video tape; (5)wireless video systems; (6)TV instant replay.

Parametrics

ADV601LCJSTZ absolute maximum ratings: (1)VDD Supply Voltage: –0.3 to +7 V; (2)VIN Input Voltage N/A VDD: ± 0.3 V; (3)VOUT Output Voltage N/A VDD: ± 0.3 V; (4)TAMB Ambient Operating Temperature: 0 to +70 °C; (5)TS Storage Temperature: –65 to +150 °C; (6)TL Lead Temperature (5 sec)LQFP N/A: +280 °C; (7)IDD Supply Current (Dynamic)@ VDD = max, tVCLK_CYC = 37 ns (at 27 MHz VCLK): 0.11 to 0.27 A.

Features

ADV601LCJSTZ features: (1)100% Bitstream Compatible with the ADV601; (2)Precise Compressed Bit Rate Control; (3)Field Independent Compression; (4)8-Bit Video Interface Supports CCIR-656 and Multiplexed Philips Formats; (5)General Purpose 16- or 32-Bit Host Interface with 512 Deep 32-Bit FIFO PERFORMANCE; (6)Real-Time Compression or Decompression of CCIR-601 to Video; (7)Compression Ratios from Visually Loss-Less to 350:1; (8)Visually Loss-Less Compression At 4:1 on Natural Images (Typical).
