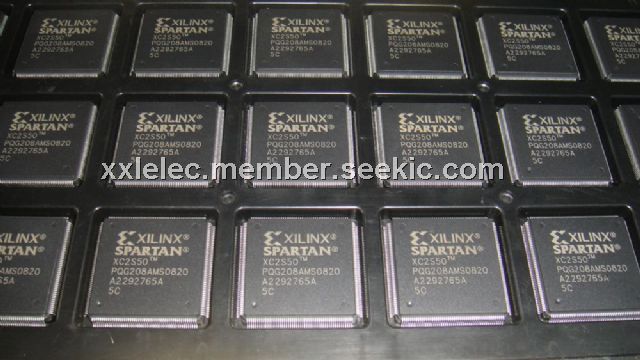

XC2S50-5PQG208C

XC2S50-5PQG208C, Field-Programmable Gate Array, QFP-208, 3V, Xilinx, Inc

Rated 5 Rating 5 | reviews | Write a review

Price:: US $6.00~8.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $6.00~8.00

PartNumber:: XC2S50-5PQG208C

Brand:: Xilinx, Inc - Xilinx | Pack: QFP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Dannie's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-09-18

From Other Seller

Part Number:XC2S50-5PQG208C
US $6.00 - 8.00
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The XC2S50-5PQG208C is a Spartan-II Field-Programmable Gate Array. It is a superior alternative to mask-programmed ASICs. The device avoids the initial cost, lengthy development cycles, and inherent risk of conventional ASICs. Also, the XC2S50-5PQG208C programmability permits design upgrades in the field with no hardware replacement necessary (impossible with ASICs). Features include block RAM (to 56K bits), distributed RAM (to 75,264 bits), 16 selectable I/O standards, and four DLLs.

Parametrics

XC2S50-5PQG208C absolute maximum ratings: (1)VCCINT Supply voltage relative to GND: min=–0.5V, max=3.0 V; (2)VCCO Supply voltage relative to GND: min=–0.5V, max=4.0 V; (3)VREF Input reference voltage: min=–0.5V, max=3.6 V; (4)VIN Input voltage relative to GND 5V tolerant I/O: min=–0.5V, max=5.5 V; No 5V tolerance: min=–0.5V, max=VCCO +0.5 V; (5)VTS Voltage applied to 3-state output 5V tolerant I/O: min=–0.5V, max=5.5 V; No 5V tolerance: min=–0.5V, max=VCCO+0.5 V; (6)TSTG Storage temperature (ambient): min=–65℃, max=+150 ℃; (7)TJ Junction temperature: max=+125 ℃.

Features

XC2S50-5PQG208C features: (1)Fully PCI compliant; (2)Low-power segmented routing architecture; (3)Full readback ability for verification/observability; (4)Dedicated carry logic for high-speed arithmetic; (5)Efficient multiplier support; (6)Cascade chain for wide-input functions; (7)Abundant registers/latches with enable, set, reset; (8)Four dedicated DLLs for advanced clock control; (9)Four primary low-skew global clock distribution nets; (10)IEEE 1149.1 compatible boundary scan logic.
