Product Summary
The AK4388ET-E2 offer the perfect mix for cost and performance based audio systems. Using AKM multi bit architecture for its modulator, the AK4388ET-E2 deliver a wide dynamic range while preserving linearity for improved THD+N performance. The AK4388ET-E2 integrates a combination of SCF and CTF filters increasing performance for systems with excessive clock jitter. The 24 Bit word length and 192kHz sampling rate make this part ideal for a wide range of applications including DVD-Audio. The AK4388ET-E2 is offered in a space saving 16pin TSSOP package.
Parametrics
AK4388ET-E2 absolute maximum ratings: (1)Power Supply: -0.3 to 6.0 V; (2)Input Current (any pins except for supplies): ±10 mA; (3)Input Voltage: -0.3 to VDD+0.3 V; (4)Ambient Operating Temperature: -20 to 85 °C; (5)Storage Temperature: -65 to 150 °C .
Features
AK4388ET-E2 features: (1)Sampling Rate Ranging from 8kHz to 192kHz; (2)128 times Oversampling (Normal Speed Mode); (3)64 times Oversampling (Double Speed Mode); (4)32 times Oversampling (Quad Speed Mode); (5)24-Bit 8 times FIR Digital Filter; (6)SCF with High Tolerance to Clock Jitter; (7)Single Ended Output Buffer; (8)Digital de-emphasis; (9)Soft mute.

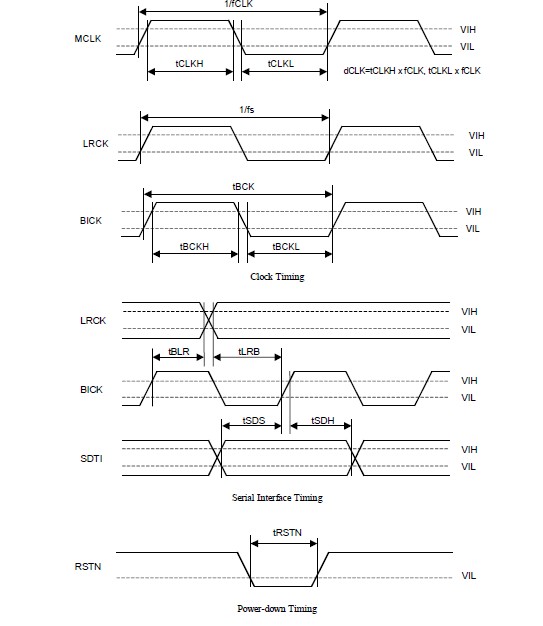

Diagrams
