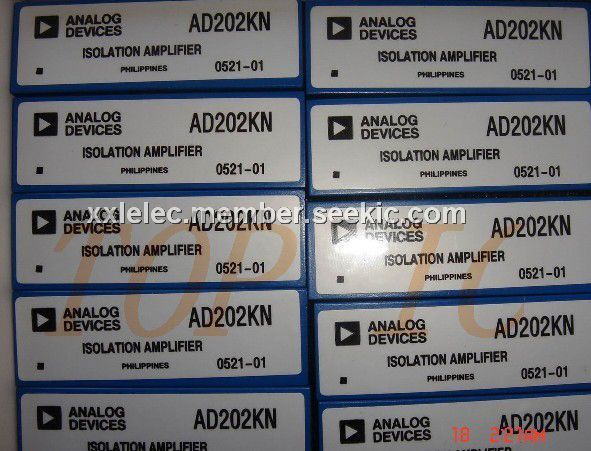

AD202KN

AD202KN, transformer-coupled isolation amplifier, DIP, 1500V, 5mA, Analog Devices

Rated 5 Rating 5 | reviews | Write a review

Price:: US $35.00~38.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $35.00~38.00

PartNumber:: AD202KN

Brand:: Analog Devices - ADI | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Dannie's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-09-06

From Other Seller

Part Number:AD202KN
US $35.00 - 38.00
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

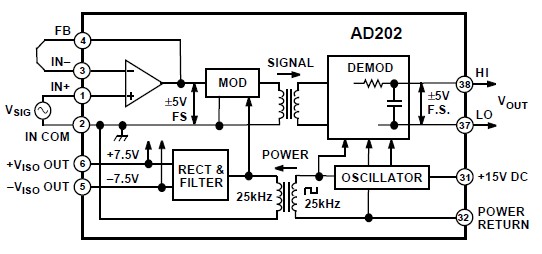

The AD202KN is a general purpose, two-port, transformer-coupled isolation amplifier that may be used in a broad range of applications where input signals must be measured, processed, and/or transmitted without a galvanic connection. The AD202KN provides total galvanic isolation between the input and output stages of the isolation amplifier through the use of internal transformer-coupling. The applications of the AD202KN are Multichannel Data Acquisition, Current Shunt Measurements, Motor Controls, Process Signal Isolation, High Voltage Instrumentation Amplifier.

Parametrics

AD202KN absolute maximum ratings: (1)Max lsolation Voltage (Input to Output)AC, 60 Hz, Continuous: 1500 V; Continuous (AC and DC): ±2000V peak; (2)Isolation-Mode Rejection Ratio (IMRR) @ 60 Hz RS ≤ 100 Ω (HI & LO lnputs) G = 1 V/V: 105dB; (3)Frequency response Bandwidth (VO ≤ 10 V p-p, G = 1 V–50 V/V): 2KHz; (4)Voltage, Rated Performance: +15 V ±5%; (5)Voltage, Operating: +15 V ±10%; (6)Current, No Load (VS = +15 V): 5 mA.

Features

AD202KN features: (1)Small Size: 4 Channels/lnch; (2)High Accuracy: ±0.025% Max Nonlinearity (K Grade); (3)High CMR: 130 dB (Gain = 100 V/V); (4)High CMV Isolation: ±2000 V pk Continuous (K Grade)(Signal and Power); (5)Isolated Power Outputs; (6)Uncommitted Input Amplifier.
