Product Summary
The AM29LV017D-70EC is a 16 Mbit, 3.0 Volt-only Flash memory organized as 2,097,152 bytes. The AM29LV017D-70EC is offered in 48-ball FBGA and 40-pin TSOP packages. The byte-wide (x8) data appears on DQ7–DQ0. All read, program, and erase operations are accomplished using only a single power supply. The AM29LV017D-70EC can also be programmed in standard EPROM programmers. The device requires only a single 3.0 volt power supply for both read and write functions. Internally generated and regulated voltages are provided for the program and erase operations.
Parametrics
AM29LV017D-70EC absolute maximum ratings: (1)Storage Temperature Plastic Packages: –65℃ to +150℃; (2)Ambient Temperature with Power Applied: –55℃ to +125℃; (3)Voltage with Respect to Ground, VCC: –2.0 V to +7.0 V; A9, OE, and RESET: –2.0 V to +12.5 V; All other pins: –0.5 V to +7.0 V; (4)Output Short Circuit Current: 200 mA.
Features
AM29LV017D-70EC features: (1)Single power supply operation; (2)Manufactured on 0.32 μm process technology; (3)High performance; (4)Low power consumption (typical values at 5 MHz; (5)Flexible sector architecture; (6)Top or bottom boot block configurations; (7)available; (8)Embedded Algorithms; (9)Minimum 1,000,000 program/erase cycles per sector guaranteed.

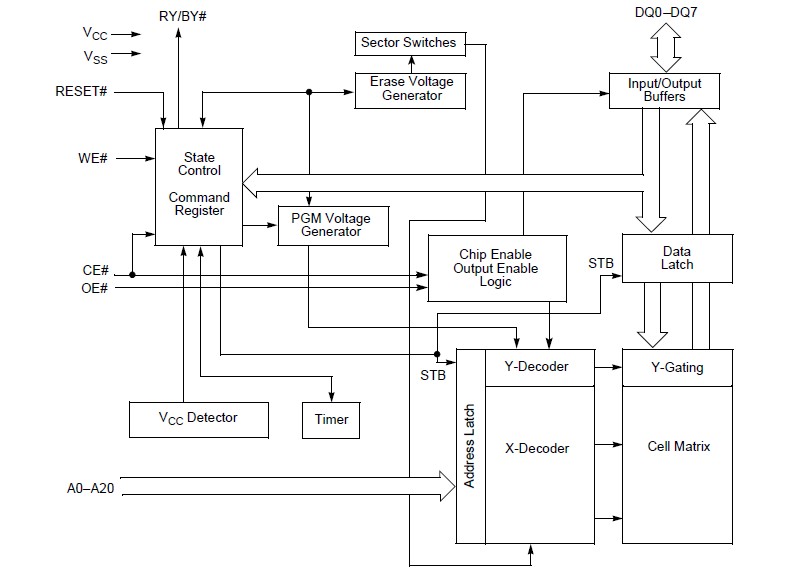

Diagrams
