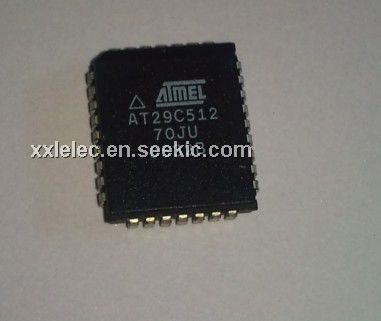

AT29C512-70JU

AT29C512-70JU, in-system Flash PEROM, PLCC, -0.6V to +6.25V, 275 mW, ATMEL Corporation

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.65~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	3.00 / Piece
101 ~ 500 :	2.80 / Piece
501 ~ 10000 :	2.65 / Piece

PartNumber:: AT29C512-70JU

Brand:: ATMEL Corporation - ATMEL | Pack: PLCC | D/C: 12+

Availability:: Supply Ability: 10000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Dannie's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-02-19

From Other Seller

Part Number:AT29C512-70JU
US $2.65 - 3.00
Quantity:

piece

Product Summary

The AT29C512-70JU is a 5-volt only in-system Flash programmable and erasable read only memory (PEROM). The AT29C512-70JU 512K of memory is organized as 65,536 words by 8 bits. Manufactured with Atmel advanced nonvolatile CMOS technology, the AT29C512-70JU offers access times to 70 ns with power dissipation of just 275 mW over the industrial temperature range. When the AT29C512-70JU is deselected, the CMOS standby current is less than 300 μA. The device endurance is such that any sector can typically be written to in excess of 10,000 times.

Parametrics

AT29C512-70JU absolute maximum ratings: (1)Temperature Under Bias: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)All Input Voltages with Respect to Ground: -0.6V to +6.25V; (4)All Output Voltages with Respect to Ground: -0.6V to VCC + 0.6V; (5)Voltage on OE with Respect to Ground: -0.6V to +13.5V.

Features

AT29C512-70JU features: (1)Fast Read Access Time 70 ns; (2)5-volt Only Reprogramming; (3)Sector Program Operation; (4)Internal Program Control and Timer; (5)Hardware and Software Data Protection; (6)Fast Sector Program Cycle Time 10 ms; (7)DATA Polling for End of Program Detection; (8)Typical Endurance > 10,000 Cycles; (9)Single 5V 10% Supply; (10)CMOS and TTL Compatible Inputs and Outputs; (11)Green (Pb/Halide-free) Packaging Option.
