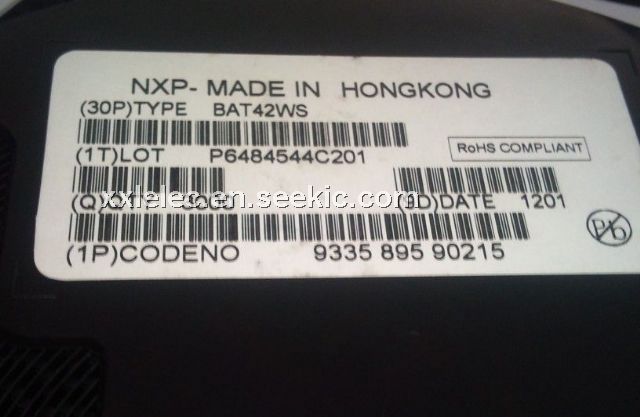

(Hong Kong)
Product Summary
The BAT42WS is a Surface Mount Schottky Barrier Diode.
Parametrics
BAT42WS absolute maximum ratings: (1)Peak Repetitive Reverse Voltage, VRRM: 30V; Working Peak Reverse Voltage, VRWM: 30V; DC Blocking Voltage, VR: 30 V; (2)RMS Reverse Voltage, VR(RMS): 21 V; (3)Forward Continuous Current, IFM: 200 mA; (4)Repetitive Peak Forward Current @ t < 1.0s, IFRM: 500 mA; (5)Non-Repetitive Peak Forward Surge Current @ t < 10ms, IFSM: 4.0A; (6)Power Dissipation, Pd: 200 mW; (7)Thermal Resistance Junction to Ambient Air, RθJA: 625℃/W; (8)Operating and Storage Temperature Range Tj , TSTG: -55 to +125℃.
Features
BAT42WS features: (1)Low Forward Voltage Drop; (2)Fast Switching; (3)Ultra-Small Surface Mount Package; (4)Lead Free/RoHS Compliant.

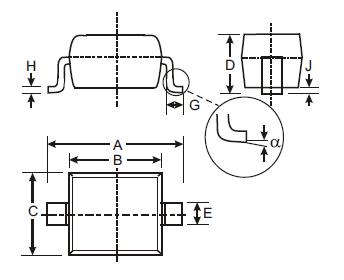

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BAT42WS |
Taiwan Semiconductor |
Schottky (Diodes & Rectifiers) 30 Volt 200mA 200mW |
Data Sheet |
|
|
||||||||||||
|
BAT42WS/BAT43WS |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
BAT42WS-7-F |
Diodes Inc. |
Schottky (Diodes & Rectifiers) 30V 200mW |
Data Sheet |
|
|
||||||||||||
 |
BAT42WS-TP |
Micro Commercial Components (MCC) |
Schottky (Diodes & Rectifiers) 200mA 30V |
Data Sheet |
|
|
||||||||||||
|
BAT42WS-7 |
Diodes Inc. |
Schottky (Diodes & Rectifiers) 30V 200mW |
Data Sheet |
Negotiable |
|
||||||||||||
|
BAT42WS-T |
Micro Commercial Components (MCC) |
Schottky (Diodes & Rectifiers) 200mA 30V |
Data Sheet |
Negotiable |
|
||||||||||||
|
BAT42WS-V-GS08 |
Vishay |
Schottky (Diodes & Rectifiers) 200mA 30V 4A IFSM |
Data Sheet |
|
|
||||||||||||
|
BAT42WS-V-GS18 |
Vishay |
Schottky (Diodes & Rectifiers) 200mA 30V 4A IFSM |
Data Sheet |
|
|
||||||||||||
