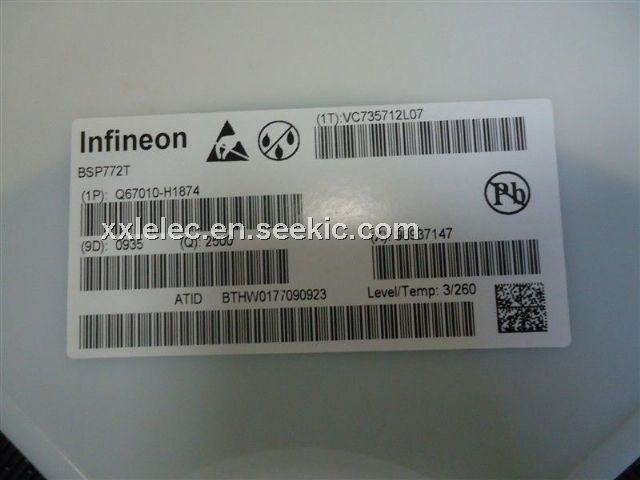

BSP772T

BSP772T, channel vertical power FET, 40 V, 5 mA, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.30~4.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 500 :	4.00 / Piece
501 ~ 1000 :	3.60 / Piece
1001 ~ 5000 :	3.30 / Piece

PartNumber:: BSP772T

Brand:: Infineon Technologies AG - Infineon | Pack: SOP | D/C: 13+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Dannie's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-08

From Other Seller

Part Number:BSP772T
US $3.30 - 4.00
BSP772T

US $0.35 - 0.40 / Piece
(0) Remove
Quantity:

piece

Product Summary

The BSP772T is an N channel vertical power FET with charge pump, ground referenced CMOS compatible input, monolithically integrated in Smart SIPMOS technology. The applicaitons of the BSP772T include All types of resistive, inductive and capacitive loads, μC compatible power switch for 12 V and 24 V DC applications and Replaces electromechanical relays and discrete circuits.

Parametrics

BSP772T absolute maximum ratings: (1)Supply voltage: 40 V; (2)Supply voltage for full short circuit protection Tj = -40 to +150 ℃: 36; (3)Continuous input voltage: -10 to +16 V; (4)Load current: self limited A; (5)Current through input pin (DC): ± 5 mA; (6)Operating temperature: -40 to +150 ℃; (7)Storage temperature: -55 to +150 ℃.

Features

BSP772T features: (1)Overload protection; (2)Current limitation; (3)Short circuit protection; (4)Thermal shutdown with restart; (5)Overvoltage protection (including load dump); (6)Fast demagnetization of inductive loads; (7)Reverse battery protection with external resistor; (8)CMOS compatible input; (9)Loss of GND and loss of Vbb protection; (10)ESD - Protection; (11)Very low standby current.
