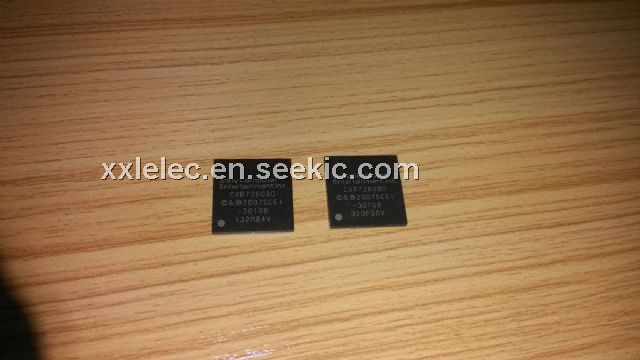

Product Summary

The CXR726080-301GB is a CMOS 32-bit microcomputer integrating on a single chip an A/D converter, serial interface, timer, bus interface unit, DMA controller, memory stick interface, and as well as basic configurations like a 32-bit RISC CPU, ROM, RAM, and I/O port. The CXR726080-301GB provides the idle/sleep/stop functions that enable lower power consumption.

Parametrics

CXR726080-301GB absolute maximum ratings: (1)Input voltage: –0.3 to +4.6V; (2)Output voltage: –0.3 to +4.6V; (3)High level output current: -5mA; (4)High level total output current: -40mA; (5)Low level output current: 10mA; (6)Low level total output current: 80mA; (7)Operating temperature: –40 to +85°C; (8)Storage temperature: –55 to +150°C; (9)Allowable power dissipation: 380mW.

Features

CXR726080-301GB features: (1)CPU SR11 series 32-bit RISC CPU core; (2)Minimum instruction cycle 54.3ns (fSRC: 18.432MHz), 30.5μs (fTEX: 32.768kHz); (3)Incorporated ROM 256K bytes; (4)Incorporated RAM 16K bytes; (5)Standby mode Idle/sleep/stop; (6)Package 176-pin plastic LFLGA.

Diagrams

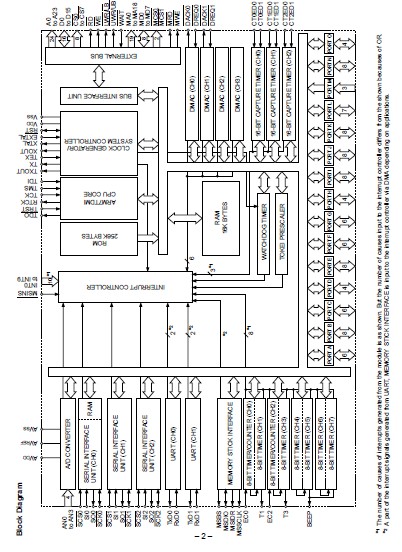

CXR726080-301GB pin connection
