DAC128S085CIMT

DAC128S085CIMT, 12-Bit Micro Power OCTAL Digital-to-Analog Converter, DIP, 6.5V, 30mA, National Semiconductor

Rated 5 Rating 5 | reviews | Write a review

Price:: US $4.85~5.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	5.00 / Piece
101 ~ 500 :	4.90 / Piece
501 ~ 10000 :	4.85 / Piece

PartNumber:: DAC128S085CIMT

Brand:: National Semiconductor - NS | Pack: DIP | D/C: 12+

Availability:: Supply Ability: 10000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Dannie's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-02-20

From Other Seller

Part Number:DAC128S085CIMT
US $4.85 - 5.00
Quantity:

piece

Product Summary

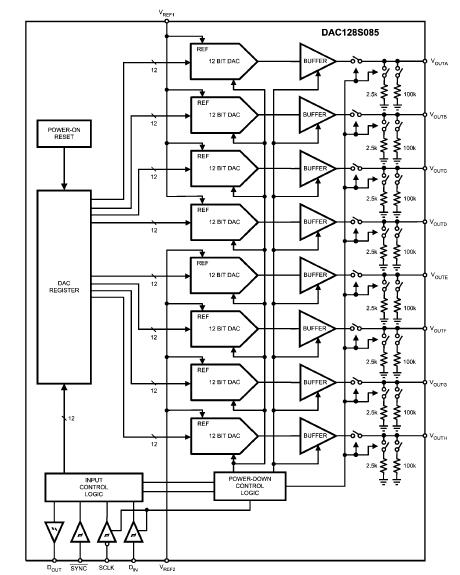

The DAC128S085CIMT is a full-featured, general purpose OCTAL 12-bit voltage-output digital-to-analog converter (DAC) that can operate from a single +2.7V to +5.5V supply and consumes 1.95 mW at 3V and 4.85 mW at 5V. The DAC128S085CIMT is packaged in a 16-lead LLP package and a 16-lead TSSOP package. The LLP package makes the DAC128S085CIMT the smallest OCTAL DAC in its class. The on-chip output amplifiers allow rail-to-rail output swing and the three wire serial interface operates at clock rates up to 40 MHz over the entire supply voltage range. The applications of the DAC128S085CIMT include Battery-Powered Instruments, Digital Gain and Offset Adjustment, Programmable Voltage & Current Sources, Programmable Attenuators, Voltage Reference for ADCs, Sensor Supply Voltage, Range Detectors.

Parametrics

DAC128S085CIMT absolute maximum ratings: (1)Supply Voltage, VA: 6.5V; (2)Voltage on any Input Pin: -0.3V to 6.5V; (3)Input Current at Any Pin (Note 3): 10 mA; (4)Package Input Current (Note 3): 30 mA; (5)Power Consumption at TA = 25℃: See (Note 4); (6)ESD Susceptibility (Note 5), Human Body Model: 2500V; Machine Model: 250V; Charge Device Mode: 1000V; (7)Junction Temperature: +150℃; (8)Storage Temperature: -65℃ to +150℃.

Features

DAC128S085CIMT features: (1)Guaranteed Monotonicity; (2)Low Power Operation; (3)Rail-to-Rail Voltage Output; (4)Daisy Chain Capability; (5)Power-on Reset to 0V; (6)Simultaneous Output Updating; (7)Individual Channel Power Down Capability; (8)Wide power supply range (+2.7V to +5.5V); (9)Dual Reference Voltages with range of 0.5V to VA; (10)Operating Temperature Range of -40℃ to +125℃; (11)Industry’s Smallest Package.
