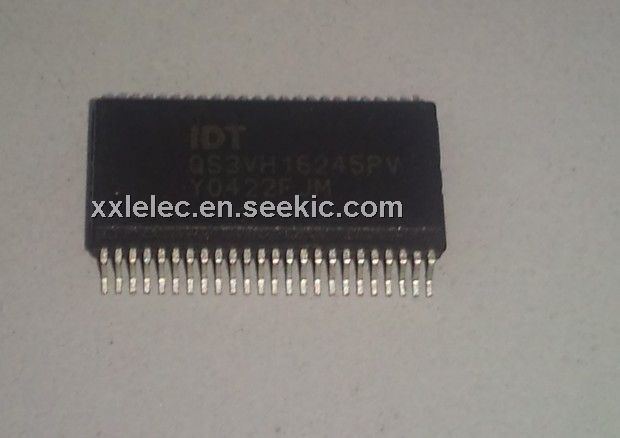

Product Summary
The IDTQS3VH16245PV is a 16-bit high bandwidth bus switch. The IDTQS3VH16245PV has very low ON resistance, resulting in under 250ps propagation delay through the switch. The switch can be turned ON under the control of the LVTTL-compatible Output Enable signals (OEx) for bidirectional data flow with no added delay or ground bounce. In the ON state, the switch can pass signals up to 5V. In the OFF state, the switches offer very high impedance at the terminals. The applications of the IDTQS3VH16245PV include Hot-swapping, 10/100 Base-T, Ethernet LAN switch, Low distortion analog switch, Replaces mechanical relay, ATM 25/155 switching.
Parametrics
IDTQS3VH16245PV absolute maximum ratings: (1)VTERM(2), Supply Voltage to Ground: -0.5 to 4.6 V; (2)VTERM(3), DC Switch Voltage VS: -0.5 to 5.5 V; (3)VTERM(3), DC Input Voltage VIN: -0.5 to 5.5 V; (4)VAC, AC Input Voltage (pulse width ≤20ns): -3 V; (5)IOUT, DC Output Current (max. current/pin): 120 mA; (6)TSTG, Storage Temperature: -65 to +150℃.
Features
IDTQS3VH16245PV features: (1)N channel FET switches with no parasitic diode to Vcc, Isolation under power-off conditions; No DC path to Vcc or GND; 5V tolerant in OFF and ON state; (2)5V tolerant I/Os; (3)Low RON - 4Ω typical; (4)Flat RON characteristics over operating range; (5)Rail-to-rail switching 0 - 5V; (6)Bidirectional dataflow with near-zero delay: no added ground bounce; (7)Excellent RON matching between channels; (8)Vcc operation: 2.3V to 3.6V; (9)High bandwidth - up to 500 MHz; (10)LVTTL-compatible control Inputs; (11)Undershoot Clamp Diodes on all switch and control Inputs; (12)Low I/O capacitance, 4pF typical; (13)Available in SSOP and TSSOP packages.

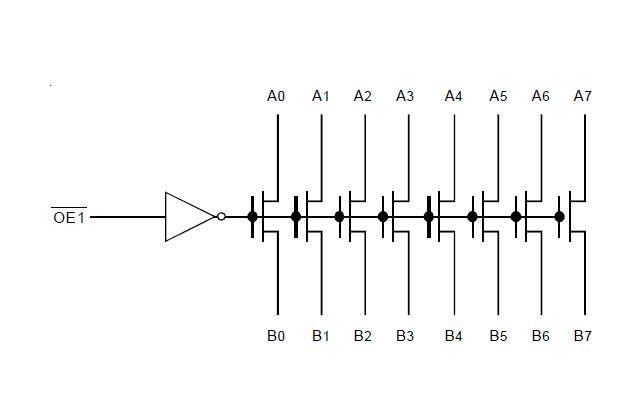

Diagrams
