Product Summary

The INA-34063(34L) is a Silicon RFIC amplifier that offers excellent gain and output power for applications to 3.0 GHz. Packaged in an ultraminiature SOT-363 package, it requires half of the board space of a SOT-143 package. The INA-34063(34L) offers wide bandwidth and good linearity and 17 dB gain with a modest supply current. With its input and output matched internally to 50 W, the INA-34063(34L) is a simple to use gain block that is suitable for numerous applications. The applications of the INA-34063(34L) include LO Buffer and Driver Amplifier for Cellular, Cordless, Special Mobile Radio, PCS, ISM, Wireless LAN, DBS, TVRO, and TV Tuner.

Parametrics

INA-34063(34L) absolute maximum ratings: (1)Vd, Device Voltage RF output to ground: 6.0V; (2)Pin, CW RF Input Power: +7.0dBm; (3)Tj, Junction Temperature: 150℃; (4)TSTG, Storage Temperature: -65 to 150℃.

Features

INA-34063(34L) features: (1)17 dB Gain at 1.9 GHz; (2)+3 dBm P1 dB at 1.9 GHz; (3)Single +3V Supply; (4)Unconditionally Stable.

Diagrams

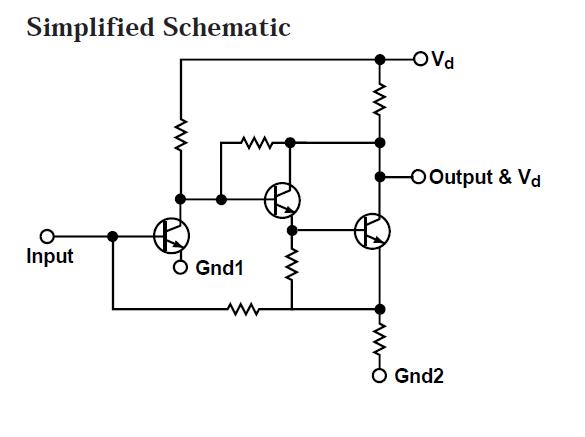

INA-34063(34L) block diagram
