Product Summary

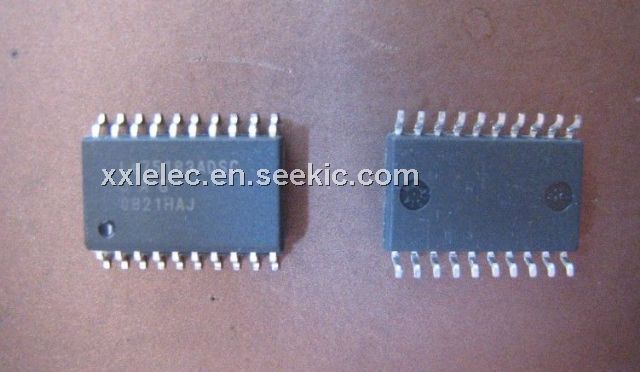

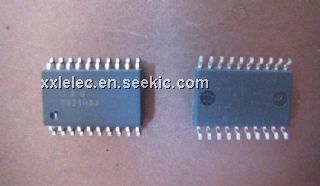

The LE75183ADSC is a Line Card Access Switch (LCAS). The LE75183ADSC is a family of monolithic solid-state switches that is designed to provide both power ringing access and test access on the analog line card. These devices, while not a pin-for-pin replacement for the traditional electromechanical relay (EMR) solution, provide the equivalent switching functionality. The LE75183ADSC is meant as a solid-state alternative to the EMRs. The applications of the LE75183ADSC include Central office, DLC, PBX, DAML, HFC/FITL.
Parametrics
LE75183ADSC absolute maximum ratings: (1)Operating Temperature Range: -40 to 110℃; (2)Storage Temperature Range: -40 to 150℃; (3)Relative Humidity Range: 5 to 95%; (4)Pin Soldering Temperature (t=10s max): 260℃; (5)5 V Power Supply: -0.3 to 7V; (6)Battery Supply: -85V; (7)Logic Input Voltage: -0.3 to VDD+0.3V; (8)Input-to-output Isolation: 330V; (9)Pole-to-pole Isolation (All except SW6, SW8): 330V; (10)Pole-to-pole Isolation (Ringing Access Switch, SW8): 480V; (11)Pole-to-pole Isolation (Ringing Test Switch, SW6): 260V.
Features
LE75183ADSC features: (1)Small size/surface-mount packaging; (2)Monolithic IC reliability; (3)Low impulse noise; (4)Make-before-break, break-before-make operation; (5)Clean, bounce-free switching; (6)Low, matched ON-resistance; (7)Built-in current limiting, thermal shutdown and SLIC protection; (8)5V only operation, very low power consumption; (9)Battery monitor, all OFF state upon loss of battery; (10)No EMI; (11)Latched logic level inputs, no drive circuitry; (12)Only one external protector required; (13)TTL logic control compatible; (14)Default power up state.
Diagrams
