Product Summary
The M35047-051FP is a character pattern display control ICcan display on the CRT display the liquid crystal display and theplasma display. The M35047-051FP uses a silicon gate CMOS process and ithoused in a 20-pin shrink DIP package (M35047-XXXSP) or a 20-pin shrink SOP package (M35047-XXXFP).For M35047-051FP that is a standard ROM version of M35047-051FP respectively, the character pattern is alsomentioned. Applications are CRT display, Liquid crystal display, Plasma display.
Parametrics
M35047-051FP absolute maximum ratings: (1)Supply voltage: –0.3 to +6.0V; (2)Input voltage: VSS –0.3 to VDD +0.3 V; (3)Output voltage: VSS to VDD; (4)Power dissipation: 300mW; (5)Operating temperature: –20 to +85°C; (6)Storage temperature: –40 to +125°C; (7)Horizontal synchronous signal input frequeney: 130.0khz; (8)Supply current: 60mA.
Features
M35047-051FP features: (1)Screen composition: 24 characters 5 12 lines; (2)Number of characters: displayed 288 (Max.); (3)Character composition: 12 5 18 dot matrix; (4)Characters available: ROM character:255 characters,RAM character:8 characters; (5)Character sizes available: 4 (vertical) 5 4 (horizontal); (6)Display locations available; (7)Horizontal direction: 2007 locations; (8)Vertical direction: 2047 locations; (9)Blinking: Character units; (10)Cycle : division of vertical synchronization signal into 32 or 64; (11)Duty : 25%, 50%, or 75%; (12)Data input: By the I2C-BUS serial input function; (13)Coloring for ROM character, Character color: 8 colors (Character unit), Background coloring: 8 colors (Character unit); (14),Border (shadow) coloring: 8 colors (unit of screen /; (15)character unit) Raster coloring: 8 colors (unit of screen); (16)Blanking for ROM character; (17)Display RAM erase function; (18)Display input frequency range: FOSC = 20.0MHz to 100.0MHz; (19)Horizontal synchronous input frequency: H.sync = 15 kHz to 130 kHz; (20)Display oscillation stop function.

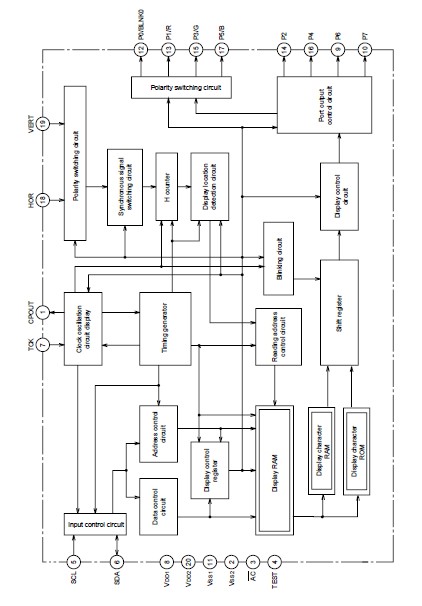

Diagrams
