Product Summary
The MAX3082CSA is a high-speed transceiver for RS-485/RS-422 communication contains one driver andone receiver. The device features fail-safe circuitry, which guarantees a logic-high receiver output while thereceiver inputs are open or shorted. It means that the receiver output will be a logic high if all transmitterson a terminated bus are disabled (high impedance). The MAX3082CSA features reducedslew-rate drivers that minimize EMI and reduce reflec-tions caused by improperly terminated cables, allowing error-free data transmission up to 115kbps. The transceiver typically draws 375μA of supplycurrent when unloaded, or when fully loaded with thedrivers disabled. The applications of the include RS-422/RS-485 Communications, Level Translators, Transceivers for EMI-Sensitive Applications, Industrial-Control Local Area Networks.
Parametrics
MAX3082CSA absolute maximum ratings: (1)Supply Voltage (VCC): +7V; (2)Control Input Voltage (RE, DE): -03V to (VCC + 03V); (3)Special Input Voltage(H/F, SRL, TXP, RXP): -0.3V to (VCC + 03V); (4)Driver Input Voltage (DI): -0.3V to (VCC + 03V); (5)Driver Output Voltage (A, B, Y, Z): ±13V; (6)Receiver Input Voltage (A, B): ±13V; (7)Receiver Input Voltage, Full Duplex (A, B): ±25V; (8)Receiver Output Voltage (RO): -0.3V to (VCC + 03V); (9)Continuous Power Dissipation 8-Pin Plastic DIP (derate 909mW/℃ above +70℃): 727mW; (10)8-Pin SO (derate 588mW/℃ above +70℃): 471mW; (11)14-Pin Plastic DIP (derate 100mW/℃ above +70℃): 800mW; (12)14-Pin SO (derate 833mW/℃ above +70℃): 667mW; (13)Operating Temperature Ranges: 0℃ to +70℃; MAX308_E_:-40℃ to +85℃; (14)Storage Temperature Range: -65℃ to +150℃; (15)Lead Temperature (soldering, 10sec): +300℃.
Features
MAX3082CSA features: (1)True Fail-Safe Receiver While Maintaining EIA/TIA-485 Compatibility; (2)Enhanced Slew-Rate Limiting Facilitates Errr-Free Data Transmissin (MAX3080-MAX3085/MAX3089); (3)1nA Lw-Current Shutdwn Mde (except MAX3081/MAX3084/MAX3087); (4)Pin-Selectable Full/Half-Duplex Operatin (MAX3089); (5)Phase Cntrols to Crrect for Twisted-Pair Reversal (MAX3089); (6)Allw Up to 256 Transceivers on the Bus.

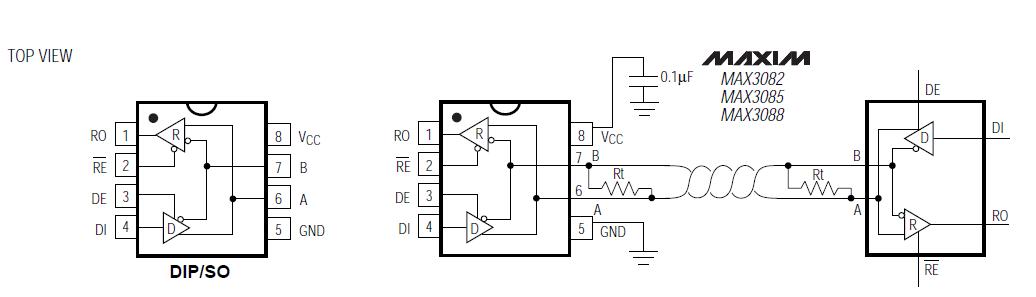

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |

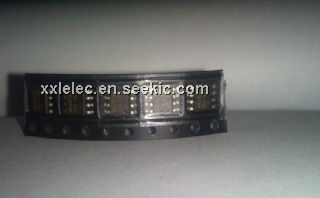

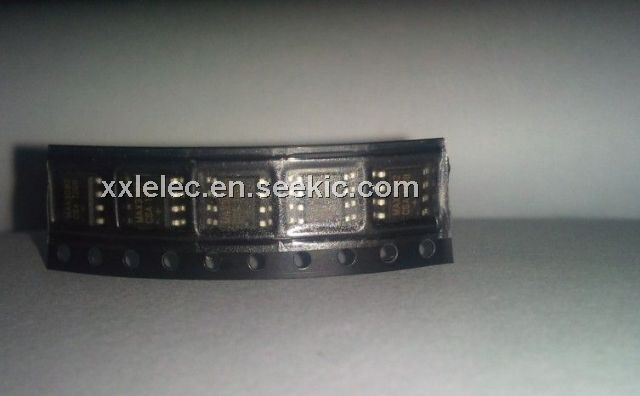

![]() MAX3082CSA |
![]() Maxim Integrated Products |
![]() RS-422/RS-485 Interface IC |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
![]() |
![]() MAX3082CSA+ |
![]() Maxim Integrated Products |
![]() RS-422/RS-485 Interface IC Fail-Safe 10Mbps RS-485/RS-422 Tcvr |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() MAX3082CSA+T |
![]() Maxim Integrated Products |
![]() RS-422/RS-485 Interface IC Fail-Safe 10Mbps RS-485/RS-422 Tcvr |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() MAX3082CSA-T |
![]() Maxim Integrated Products |
![]() RS-422/RS-485 Interface IC |
![]() Data Sheet |
![]() Negotiable |
|
