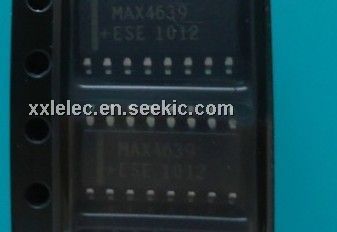

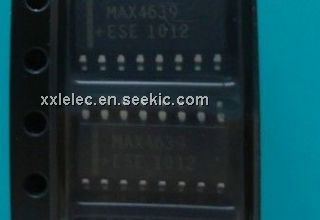

MAX4639

MAX4639, single 8:1 and dual 4:1 CMOS analog multiplexer/ demultiplexer, 75dB, 85MHz, 6V, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $11.00~15.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 500 :	15.00 / Piece
501 ~ 1000 :	13.00 / Piece
1001 ~ 3000 :	11.00 / Piece

PartNumber:: MAX4639

Brand:: Maxim Integrated Products - Maxim | Pack: SOP | D/C: 13+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Dannie's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-13

From Other Seller

Part Number:MAX4639
US $11.00 - 15.00
Quantity:

piece

Product Summary

The MAX4639 is a single 8:1 and dual 4:1 CMOS analog multiplexer/ demultiplexer (muxes/ demuxes). Each mux operates from a single +1.8V to +5V supply or dual ±2.5V supplies. The MAX4639 features 3.5Ω on-resistance (RON) when powered with a single +5V supply and have -75dB off-isolation and -85dB crosstalk from the output to each off channel. The switching times are 18ns tON and 7ns tOFF. The MAX4639 features a -3dB 85MHz bandwidth and a guaranteed 0.25nA leakage current at +25°C. Applications are (1)automatic test equipment; (2)low-voltage data-acquisition systems; (3)audio and video signal routing; (4)medical equipment; (5)battery-powered equipment; (6)relay replacement.

Parametrics

MAX4639 absolute maximum ratings: (1)V+ to V-: +6V; (2)V+, A_, EN: -0.3V to +6V; (3)V-: +0.3V to -6V; (4)Continuous Power Dissipation (TA = +70°C); (5)16-Pin QFN (derate 18.5mW/°C above +70°C): 1481mW; (6)16-Pin TSSOP (derate 5.7mW/°C above +70°C): 457mW; (7)16-Pin SO (derate 8.70mW/°C above +70°C): 696mW; (8)20-Pin QFN (derate 20mW/°C above +70°C): 1600mW; (9)Operating Temperature Range; (10)MAX463_E_ E: -40°C to +85°C; (11)Junction Temperature: +150°C; (12)Storage Temperature Range: -65°C to +150°C; (13)Lead Temperature (soldering, 10s): +300°C.

Features

MAX4639 features: (1)Guaranteed 0.4Ω RON Match Between Channels; (2)Guaranteed 1Ω RON Flatness Over Signal Range; (3)Guaranteed Low Leakage Currents, 0.25nA at +25°C; (4)Switching Times: tON = 18ns, tOFF = 7ns; (5)+1.8V to +5.5V Single-Supply Operation, ±2.5V Dual-Supply Operation; (6)Rail-to-Rail Signal Handling; (7)TTL/CMOS-Logic Compatible; (8)Crosstalk: -80dB (1MHz); (9)Off-Isolation: -60dB (10MHz).
