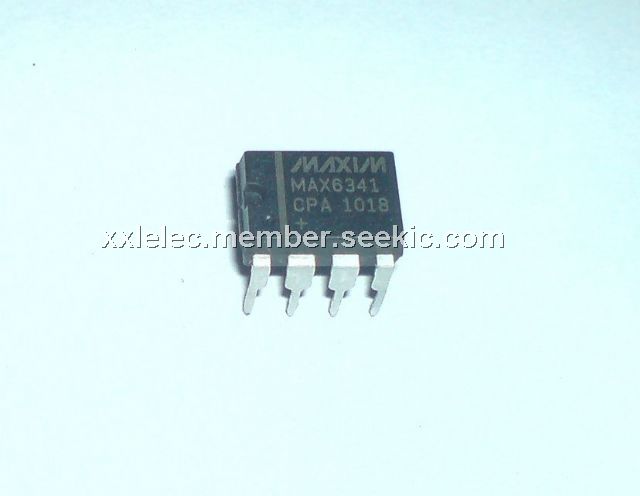

MAX6341CPA

MAX6341CPA, precision voltage reference, DIP-8, 36V, 3mA, Maxim Integrated Products

Rated 5 Rating 5 | reviews | Write a review

Price:: US $10.50~13.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $10.50~13.00

PartNumber:: MAX6341CPA

Brand:: Maxim Integrated Products - Maxim | Pack: DIP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Dannie's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-09-18

From Other Seller

Part Number:MAX6341CPA
US $10.50 - 13.00
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The MAX6341CPA is a low-noise, precision voltage reference with extremely low, 0.5ppm/℃ typical temperature coefficients and excellent, ±0.02% initial accuracy. The MAX6341CPA features buried-zener technology for lowest noise performance. Load-regulation specifications are guaranteed for source and sink currents up to 15mA. Excellent line and load regulation and low output impedance at high frequencies make it ideal for high-resolution data-conversion systems up to 16 bits. The applications of the MAX6341CPA include High-Resolution Analog-to-Digital and Digital-to-Analog Converters, High-Accuracy Reference Standard, High-Accuracy Industrial and Process Control, Digital Voltmeters, ATE Equipment, Precision Current Sources.

Parametrics

MAX6341CPA absolute maximum ratings: (1)IN: -0.3V to 40V; (2)OUT, TRIM: -0.3V to 12V; (3)NR: -0.3V to 6V; (4)OUT Short Circuit to GND Duration (VIN 2 12V): Continuous; (5)OUT Short Circuit to GND Duration (VIN 2 40V): 5sec; (6)OUT Short Circuit to IN Duration (VIN 2 12V): Continuous; (7)Continuous Power Dissipation (TA = +70℃): Plastic DIP (derate 9.09mW/℃ above +70℃): 727mW; SO (derate 5.88mW/℃ above +70℃): 471mW; CERDIP (derate 8.00mW/℃ above +70℃): 640mW; (8)Operating Temperature Ranges: 0℃ to +70℃; (9)Storage Temperature Range: -65℃ to +150℃; (10)Lead Temperature (soldering, 10sec): +300℃.

Features

MAX6341CPA features: (1)Ultra-Low, 1ppm/℃ Max Tempco; (2)Very Low, 1.5μVp-p Noise (0.1Hz to 10Hz); (3)±0.02% Initial Accuracy; (4)±15mA Output Source and Sink Current; (5)Low, 18mW Power Consumption; (6)Industry-Standard Pinout; (7)Optional Noise Reduction and Voltage Trim; (8)Excellent Transient Response; (9)8-Pin SO Package Available; (10)Low, 30ppm/1000h Long-Term Stability; (11)Stable for All Capacitive Loads.
