Product Summary
The MC33291EG is an eight output, low side power switch with 8-bit serial input control. The MC33291EG is a versatile circuit designed for automotive applications, but is well suited for other environments. The MC33291EG incorporates SMARTMOS technology, with CMOS logic, bipolar/MOS analog circuitry, and DMOS power MOSFETs. The MC33291EG interfaces directly with a microcontroller to control various inductive or incandescent loads. The circuit’s innovative monitoring and protection features include: Very Low Standby Current, SPI Cascade Fault Reporting Capability, Internal 53 V Clamp on Each Output, Output Specific Diagnostics, Independent Shutdown of Outputs.
Parametrics
MC33291EG absolute maximum ratings: (1)Power Supply Voltage, Normal Operation (Steady-State), VPWR(SUS): -1.5 to 26.5V; (2)Transient Conditions (Note 1), VPWR(PK): -13 to 60V; (3)Logic Supply Voltage (Note 2), VDD: -0.3 to 7.0 V; (4)Input Pin Voltage (Note 3), VIN: -0.3 to 7.0 V; (5)Output Clamp Voltage (Note 4), 5.0 mA ≤ Iout ≤ 0.5 A, VOUT(OFF): 45 to 65V; (6)Output Self-Limit Current, IOUT(LIM): 1.0 to 3.0 A; (7)Continuous Per Output Current (Note 5), IOUT(CONT): 500 mA; (8)ESD Voltage (Note 6), Human Body Model (Note 7), VESD1: 2000V; Machine Model (Note 8), VESD2: 200V; (9)Output Clamp Energy (Note 9), ECLAMP: 50 mJ; (10)Recommended Frequency of SPI Operation, fSPI: 3.0 MHz; (11)Storage Temperature, TSTG: -55 to 150℃; (12)Operating Case Temperature, TC: -40 to 125℃; (13)Operating Junction Temperature, TJ: -40 to 150℃; (14)Power Dissipation (TA = 25℃) (Note 10), PD: 2.0 W; (15)Soldering Temperature (Note 11), TSOLDER: 260℃.
Features
MC33291EG features: (1)Designed to Operate Over Wide Supply Voltages of 5.5 to 26.5 V; (2)Interfaces to Microprocessor Using 8-Bit SPI I/O Protocol up to 3.0 MHz; (3)1.0 A Peak Current Outputs with Maximum RDS(on) of 1.6Ω at TJ - 150℃; (4)Outputs Current Limited to Accommodate In-rush Currents Associated with Switching Incandescent Loads; (5)Output Voltages Clamped to 53 V During Inductive Switching; (6)Maximum Sleep Current (IPWR) of 25μA; (7)Maximum of 4.0 mA IDD During Operation.

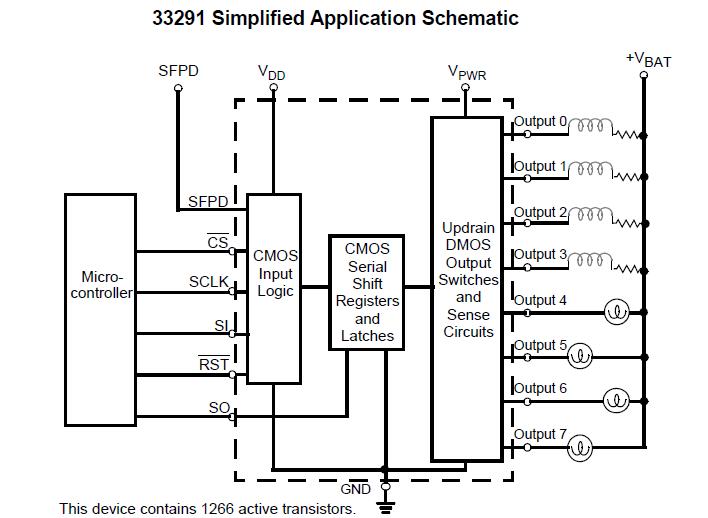

Diagrams
