Product Summary

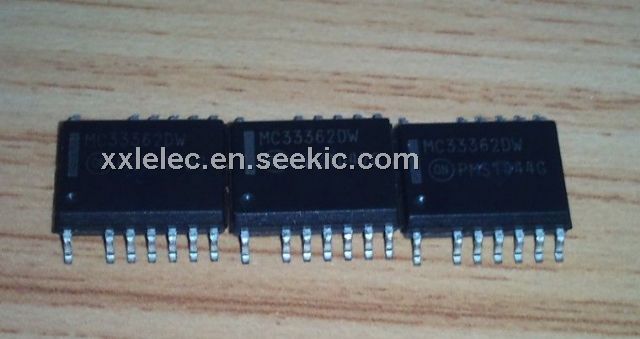

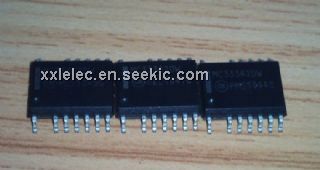

The MC33362DW is a monolithic high voltage switching regulator that is specifically designed to operate from a rectified 120 VAC line source. This integrated circuit features an on-chip 500 V/2.0 A SENSEFET power switch, 250 V active off-line start up FET, duty cycle controlled oscillator, current limiting comparator with a programmable threshold and leading edge blanking, latching pulse width modulator for double pulse suppression, high gain error amplifier, and a trimmed internal bandgap reference. Protective features include cycle-by-cycle current limiting, input undervoltage lock out with hysteresis, output overvoltage protection, and thermal shutdown. The MC33362DW is available in a 16-lead dual-in-line and wide body surface mount packages.
Parametrics
MC33362DW absolute maximum ratings: (1)Power switch, drain voltage, VDS: 500V; Drain current, IDS: 2.0A; (2)Startup input voltage, Vin: 400V; (3)Power supply voltage, VCC: 40V; (4)Operating junction temperature, Tj: -25 to 150℃; (5)Storage temperature, Tstg: -55 to 150℃.
Features
MC33362DW features: (1)On-Chip 500 V, 2.0 A SENSEFET Power Switch; (2)Rectified 120 VAC Line Source Operation; (3)On-Chip 250 V Active Off-Line Startup FET; (4)Latching PWM for Double Pulse Suppression; (5)Cycle-By-Cycle Current Limiting; (6)Input Undervoltage Lockout with Hysteresis; (7)Output Overvoltage Protection Comparator; (8)Trimmed Internal Bandgap Reference; (9)Internal Thermal Shutdown; (10)Pb-Free Packages are Available.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC33362DW |
ON Semiconductor |
Switching Converters, Regulators & Controllers ANA HI VOLT OFFLN SW REG |
Data Sheet |
Negotiable |
|
||||
|
MC33362DWG |
ON Semiconductor |
Switching Converters, Regulators & Controllers ANA HI VOLT OFFLN SW REG |
Data Sheet |
Negotiable |
|
||||
|
MC33362DWR2G |
ON Semiconductor |
Switching Converters, Regulators & Controllers ANA HI VOLT OFFLN SW REG |
Data Sheet |
Negotiable |
|
||||
|
MC33362DWR2 |
ON Semiconductor |
Switching Converters, Regulators & Controllers ANA HI VOLT OFFLN SW REG |
Data Sheet |
Negotiable |
|
||||
