MIC4452YN

MIC4452YN, non-inverting driver, 20V, 50 mA, 1040mW, DIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.00~5.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 500 :	5.00 / Piece
501 ~ 1000 :	4.00 / Piece
1001 ~ 5000 :	3.00 / Piece

PartNumber:: MIC4452YN

Brand:: Microchip Technology - Microchip | Pack: DIP | D/C: 13+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Dannie's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-13

From Other Seller

Part Number:MIC4452YN
US $3.00 - 5.00
Quantity:

piece

Product Summary

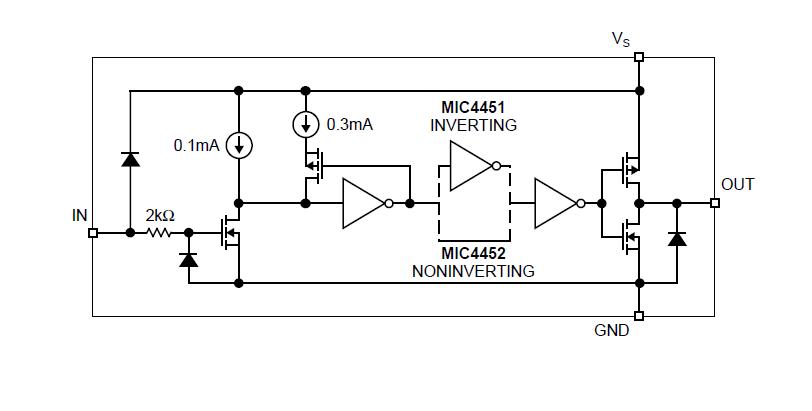

The MIC4452YN is a non-inverting driver. It is capable of 12A (peak) output and can drive the largest MOSFETs with an improved safe operating margin. The MIC4452YN accepts any logic input from 2.4V to VS without external speed-up capacitors or resistor networks. Proprietary circuits allow the input to swing negative by as much as 5V without damaging the part. Additional circuits protect against damage from electrostatic discharge.

Parametrics

MIC4452YN abosolute maximum ratings: (1)Supply Voltage: 20V; (2)Input Voltage: VS + 0.3V to GND – 5V; (3)Input Current (VIN > VS): 50 mA; (4)Power Dissipation, TAMBIENT ≤ 25°C PDIP: 960mW SOIC: 1040mW; (5)5-Pin TO-220: 2W; (6)Power Dissipation, TCASE ≤ 25°C 5-Pin TO-220: 12.5W.

Features

MIC4452YN features: (1)BiCMOS/DMOS Construction; (2)Latch-Up Proof: Fully Isolated Process is Inherently Immune to Any Latch-up.; (3)Input Will Withstand Negative Swing of Up to 5V; (4)Matched Rise and Fall Times: 25ns; (5)High Peak Output Current: 12A Peak; (6)Wide Operating Range: 4.5V to 18V; (7)High Capacitive Load Drive: 62,000pF; (8)Low Delay Time: 30ns Typ.; (9)Logic High Input for Any Voltage from 2.4V to VS; (10)Low Supply Current: 450mA With Logic 1 Input; (11)Low Output Impedance: 1.0W; (12)Output Voltage Swing to Within 25mV of GND or VS; (13)Low Equivalent Input Capacitance (typ): 7pF.
