Product Summary

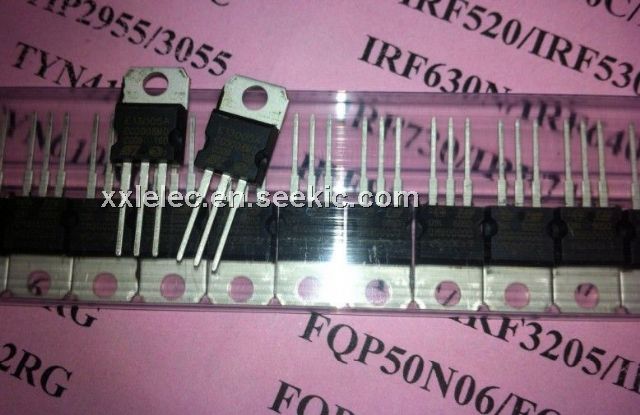

The MJE13005A is a power transistor.

Parametrics

MJE13005A absolute maximum ratings: (1)IC: 4 A; (2)VCBO: 850 V; (3)VCEO: 400 V; (4)Ptot: 75 W; (5)VCE(sat): 1 V max @ IC=4 A, IB=1 A; (6)tr: 0.7 μs max; (7)tsi: 3.5 μs max; (8)tfi: 0.9 μs max.

Features

MJE13005A features: (1)high voltage capability; (2)high speed switching; (3)wide SOA; (4)RoHS compliant.

Diagrams

MJE13005A block diagram
