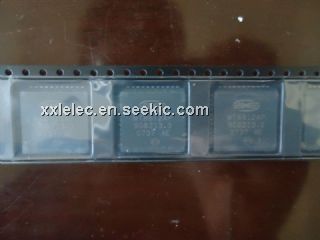

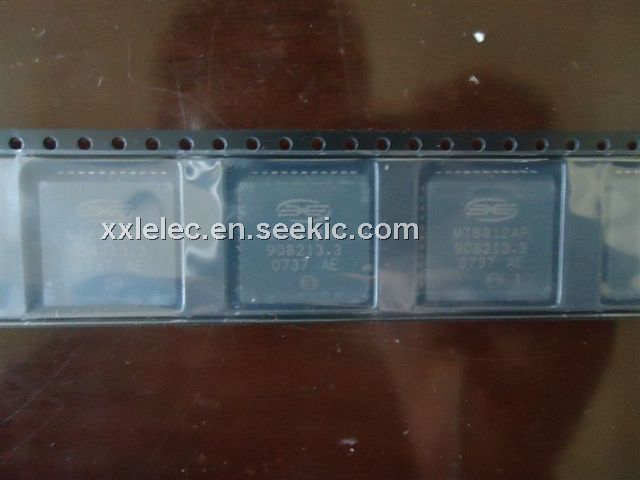

Product Summary
The MT8812AP is an analog switch array. The MT8812AP is fabricated in MITELs ISOCMOStechnology providing low power dissipationand high reliability. The MT8812AP contains a 8 x12 arrayof crosspoint switches along with a 7 to 96 linedecoder and latch circuits. Any one of the 96switches can be addressed by selecting theappropriate seven input bits. The selected switchcan be turned on or off by applying a logical one orzero to the DATA input. Applications are (1)PBX systems; (2)mobile radio; (3)test equipment /instrumentation; (4)analog/digital multiplexers; (5)audio/video switching.
Parametrics
MT8812AP absolute maximum ratings: (1)Supply Voltage VDD: -0.3 to 16.0 V; (2)Analog Input Voltage VINA: -0.3 to VDD+0.3 V; (3)Digital Input Voltage VIN VSS: -0.3 to VDD+0.3 V; (4)Current on any I/O Pin I: ±15 mA; (5)Storage Temperature TS: -65 to +150 °C; (6)Package Power Dissipation PLASTIC DIP: 1.0W.
Features
MT8812AP features: (1)Internal control latches and address decoder; (2)Short set-up and hold times; (3)Wide operating voltage: 4.5V to 14.5V; (4)14Vpp analog signal capability; (5)RON 65W max. @ VDD=14V, 25°C; (6)DRON 0W @ VDD=14V, 25°C; (7)Full CMOS switch for low distortion; (8)Minimum feedthrough and crosstalk; (9)Low power consumption ISO-CMOS technology.

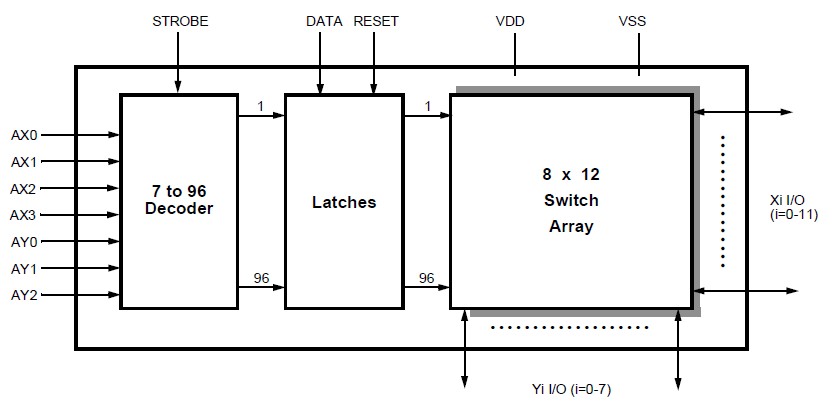

Diagrams
